HAGMOTOR 146 Drive Platform146

146 Series BLDC Motor

A compact, high-torque brushless DC motor engineered around the distinctive 146 Series mounting platform. The reinforced flange, ribbed aluminum body and hollow-spline output make it a practical drive solution for industrial machinery, utility vehicles and custom equipment.

146 Series FrameReinforced four-point mounting interface

48–72 V Platform60 V nominal reference configuration

1000 W Rated PowerReference continuous output

Hollow Spline OutputCompact mechanical connection

Request a Quote

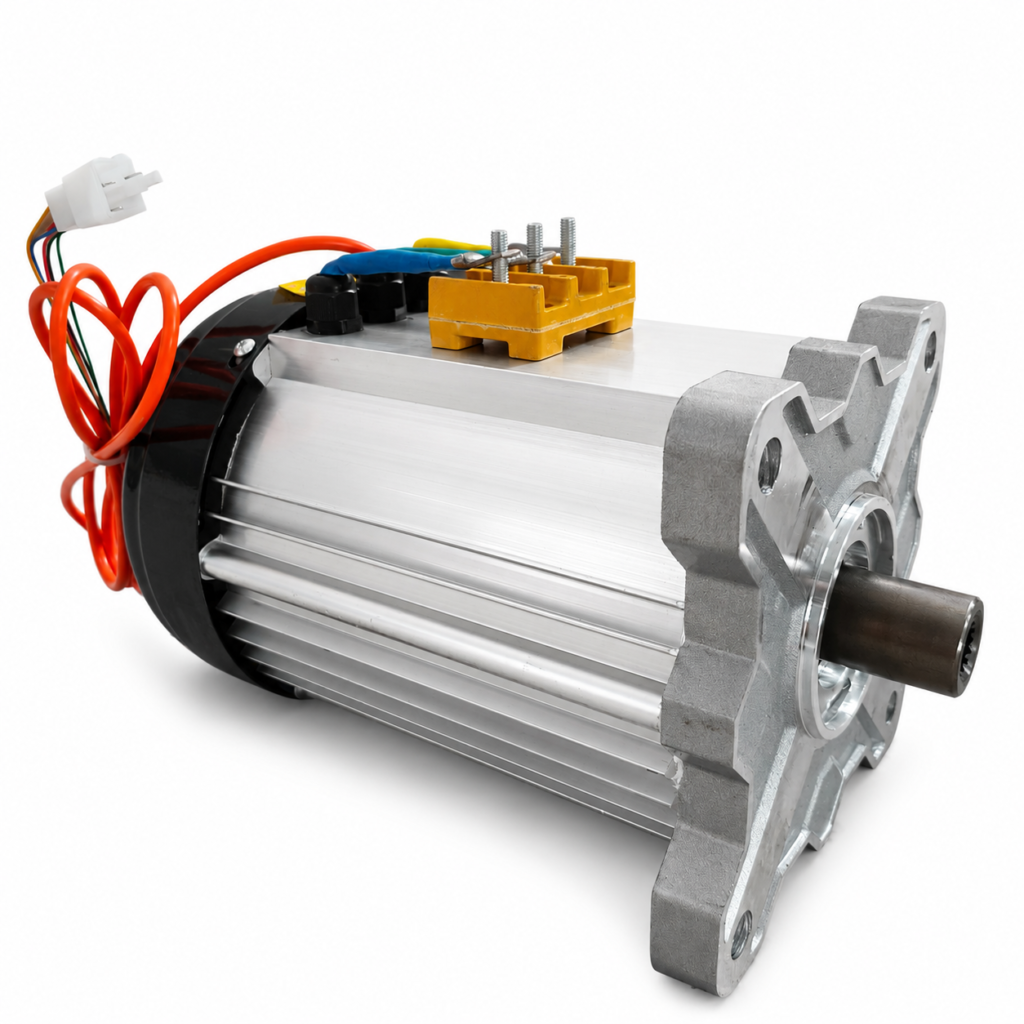

146 Series motor mounting frame and output interface

146 SERIES CORE FEATURE

Built Around the 146 Series Frame

The defining feature is the heavy-duty 146 Series mounting face. Its sculpted cast-aluminum flange, four mounting points and precision-machined center support create a rigid connection for compact drivetrains.

146 mm class mounting platform for space-efficient integration

Reinforced flange geometry helps resist working loads

Exact hole pattern and installation drawing confirmed before production

146 BLDC motor terminals and signal wiring

POWER CONNECTION

Clear Power & Signal Connections

Separated high-current terminals and a dedicated low-voltage signal connector simplify controller matching, inspection and service. Cable length, terminal format and connector selection can be adapted for the target machine.

Color-identified phase connections

Independent feedback and signal harness

Custom cable routing available for OEM installation

146 Series ribbed aluminum motor housing

ALUMINUM BODY

Ribbed Housing for Stable Thermal Performance

The extruded aluminum body combines low weight with a large heat-dissipation area. Longitudinal ribs support continuous airflow and help the 146 motor maintain consistent operation in repeated-duty equipment.

Lightweight corrosion-resistant aluminum structure

Extended cooling surface for daily operating cycles

Compact rectangular body for easier packaging

REAR COOLING

Ventilated Rear Cover

The protective black rear cover shields the rotating cooling components while maintaining ventilation. The design supports reliable low-maintenance performance and keeps the 146 platform practical for industrial use.

Protected ventilation openings

Improved airflow around the rear assembly

Service-friendly cover attachment

DRIVE CONNECTION

Compact Hollow-Spline Output

The hollow internal spline provides a short, direct drivetrain connection. It is suited to compact assemblies where controlled torque transfer, accurate alignment and reduced installation length are important.

Direct connection to matched transmission components

Compact output-side installation envelope

Spline specification confirmed against the customer drawing

COMPACT PACKAGE

Installation-Friendly 146 Motor Body

The side profile shows how the 146 mounting face, aluminum housing and rear cooling section form one compact package. This makes the motor suitable for new equipment development and replacement-drive projects.

Compact body with accessible external terminals

Adaptable overall length and wiring arrangement

Suitable for matched controller and harness packages

Why Choose the 146 Platform

Distinctive 146 Mounting. Practical BLDC Performance.

A focused motor platform for customers who need a recognizable 146 interface with configurable electrical and mechanical performance.

146Series mounting platform

48–72 VConfigurable voltage range

≥88%Reference efficiency

OEMCustom output and wiring

REFERENCE CONFIGURATION

146 Series Technical Specifications

Final parameters are confirmed according to the machine load, duty cycle, controller and installation drawing.

Specification	Reference Information
Motor Family	146 Series BLDC Motor
Reference Model	JWH 60V–1000W / 146 Series
Motor Type	Permanent-Magnet Brushless DC Motor
Mounting Frame	146 mm Class Reinforced Four-Point Flange
Rated Voltage	48–72 V (60 V Nominal Reference)
Rated Power	1000 W
Rated Speed	3000 rpm
Rated Torque	3 N·m
Maximum Torque	9 N·m
Rated Current	17 A
No-Load Current	1.5 A
Efficiency	≥88%
Output Interface	Hollow Spline
Rotation Direction	Clockwise, Viewed from Output Side
Insulation Class	Class H
Waterproof Grade	IP67 Reference Configuration*
Reference Controller	APM350 Series, 48–72 V / 20 A
Approx. Overall Length	240 mm
Approx. Weight	12 kg
Customization	Voltage, Power, Speed, Torque, Output, Cable and Connector

*Final ingress protection depends on connector selection, cable seals and installation conditions. Confirm the 146 mounting drawing, spline specification and operating parameters before ordering.

GET A FAST QUOTE

Tell us your 146 Series installation, voltage, power, speed and load requirements. We will recommend a suitable motor and matched control solution.

Quote Item	Reference Information
Motor Series	146 Series BLDC Motor
Voltage / Power	48–72 V / 1000 W Reference
Mechanical Interface	146 Mounting Flange + Hollow Spline Output
Application	Machine Type, Load, Duty Cycle and Working Environment
Customization	Controller, Harness, Connector, Cable Length and Output Interface
