Construction vehicle motor

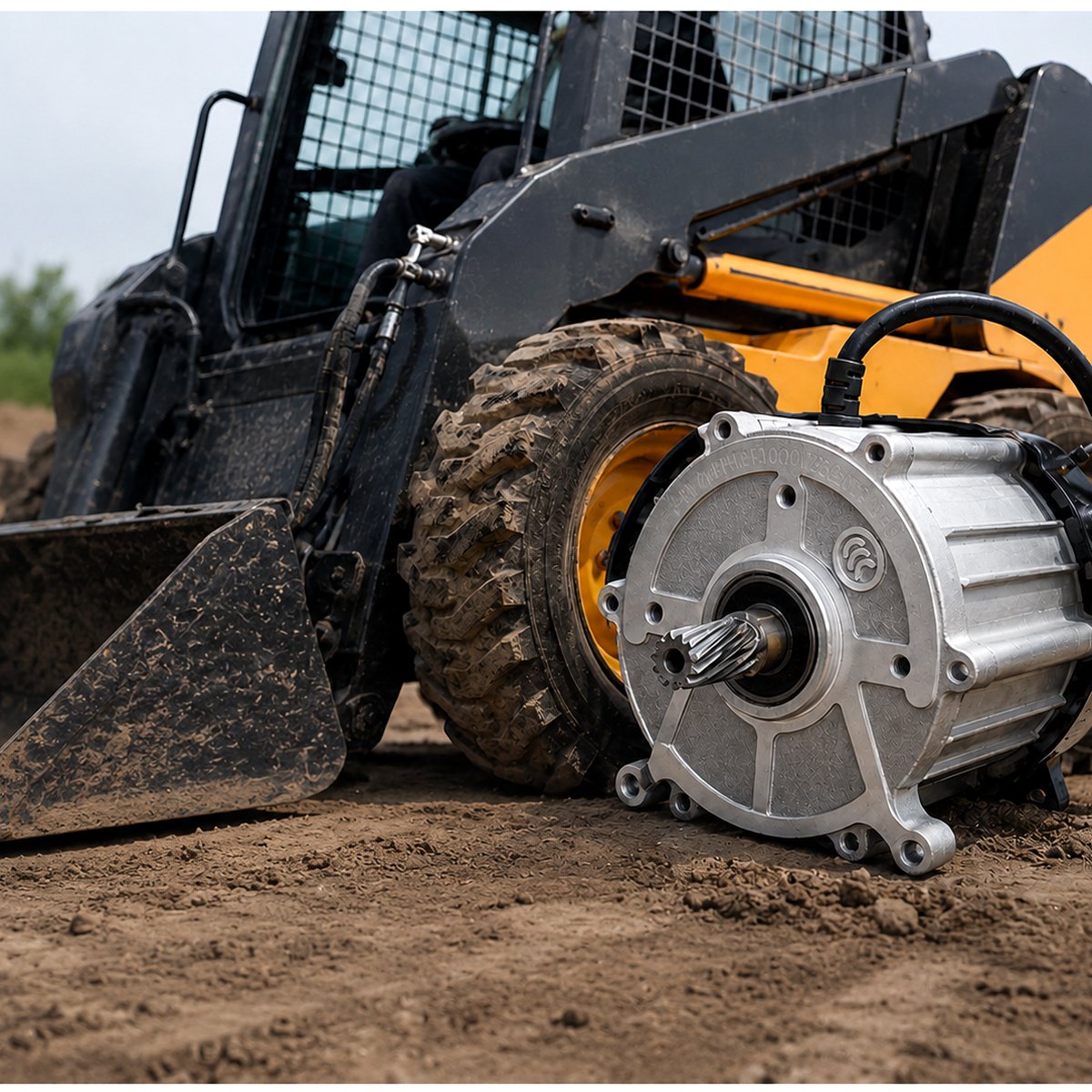

Engineering vehicle brushless motor compact structure

Product Structure

Compact Design with Reliable Output

The motor combines a ribbed aluminum housing, protected rear cover, precision output gear and integrated wiring. Its compact structure supports installation in limited spaces inside utility and engineering vehicles.

Stable Starting TorqueMaximum torque reaches 9N·m for loaded vehicle startup.

Efficient Heat DissipationAluminum cooling ribs support extended operating cycles.

Compact InstallationSuitable for limited installation spaces in mobile machinery.

Custom TransmissionOutput gear, shaft and mounting interface can be adjusted.

Engineering Applications

Designed for Mobile and Utility Equipment

Motor voltage, torque, output interface and control characteristics can be matched to the operating load, vehicle structure and transmission system.

Compact Construction Vehicles

Utility and Service Vehicles

Agricultural Machinery

Material-Handling Equipment

Mobile Work Platforms

Special-Purpose Vehicles

Electric Transport Carts

Customized Mobile Machinery

Engineering vehicle motor application scene

Motor Details

Mechanical and Electrical Interfaces

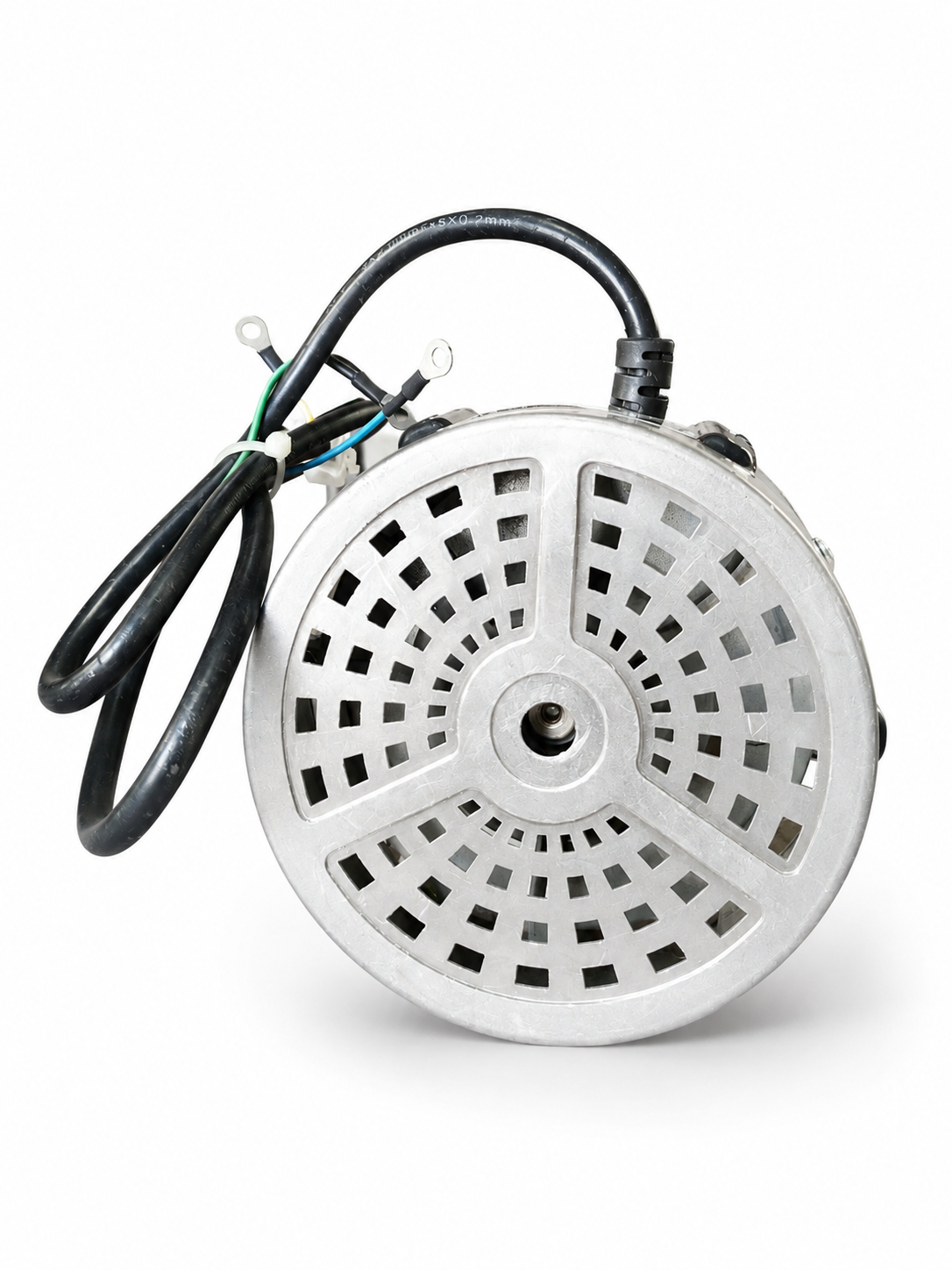

Multiple product views show the cooling cover, aluminum housing, output gear, bearing structure, wiring harness and installation interface.

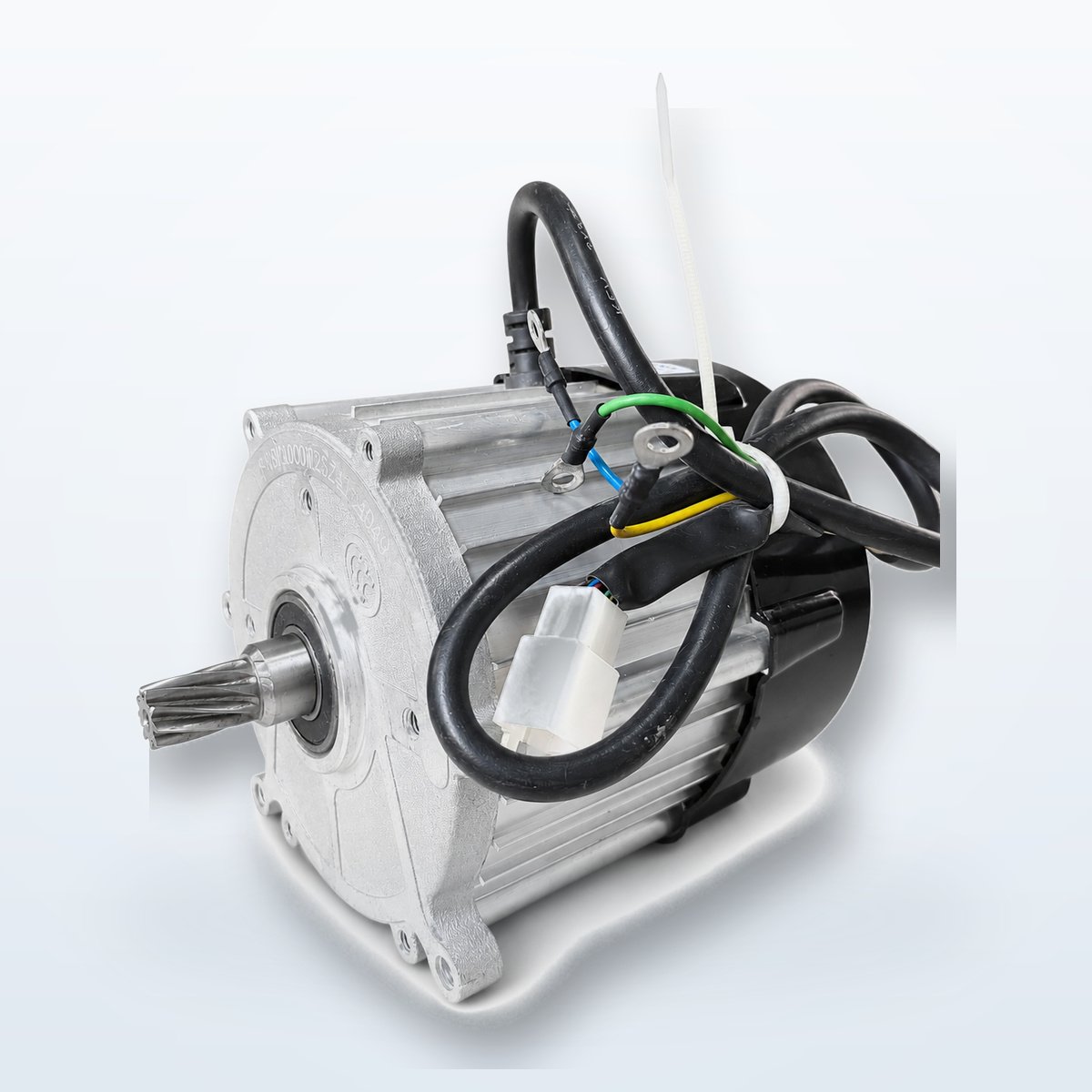

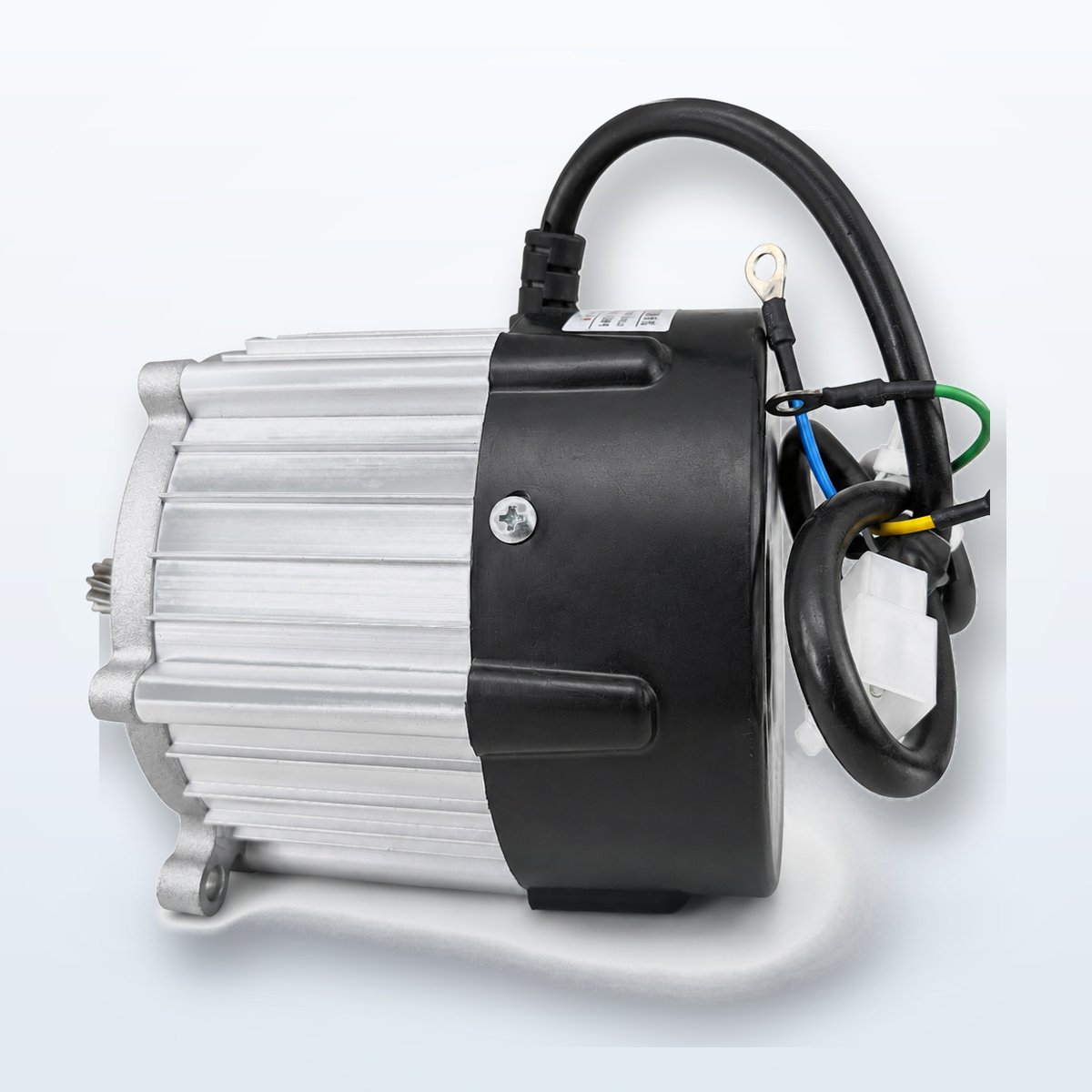

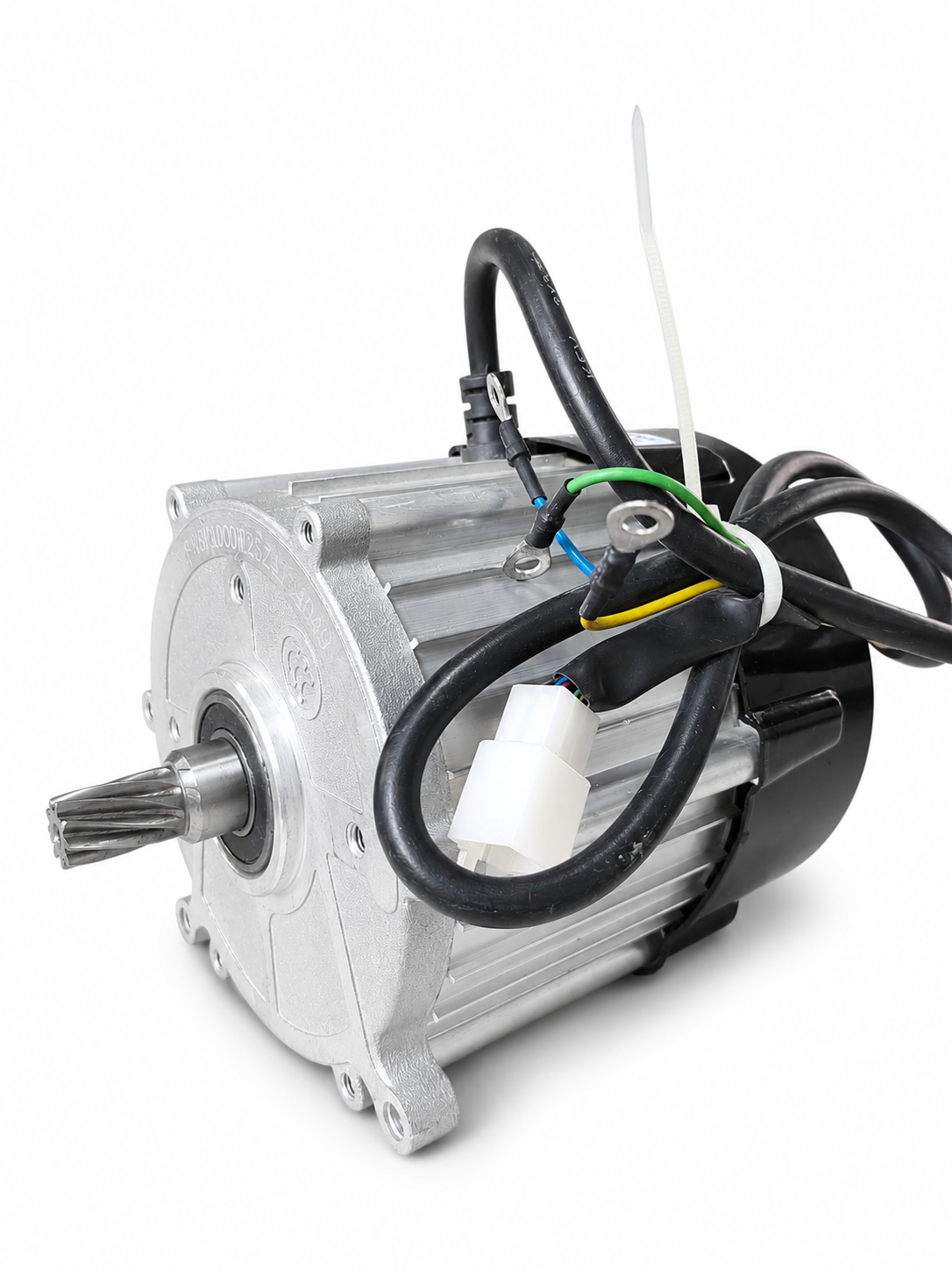

Engineering vehicle motor side structure

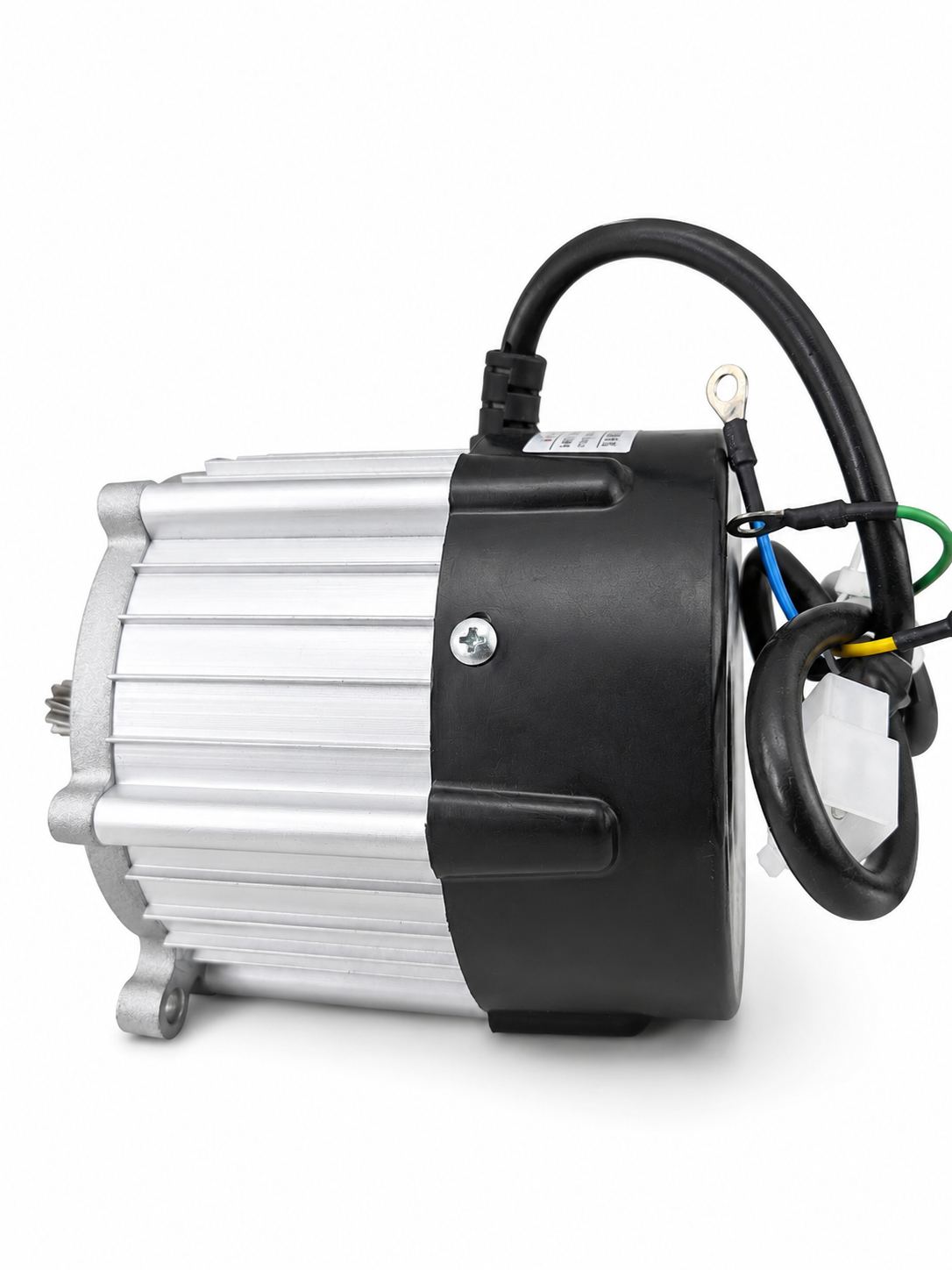

Aluminum Cooling Housing

Ribbed motor housing improves heat dissipation during continuous operation.

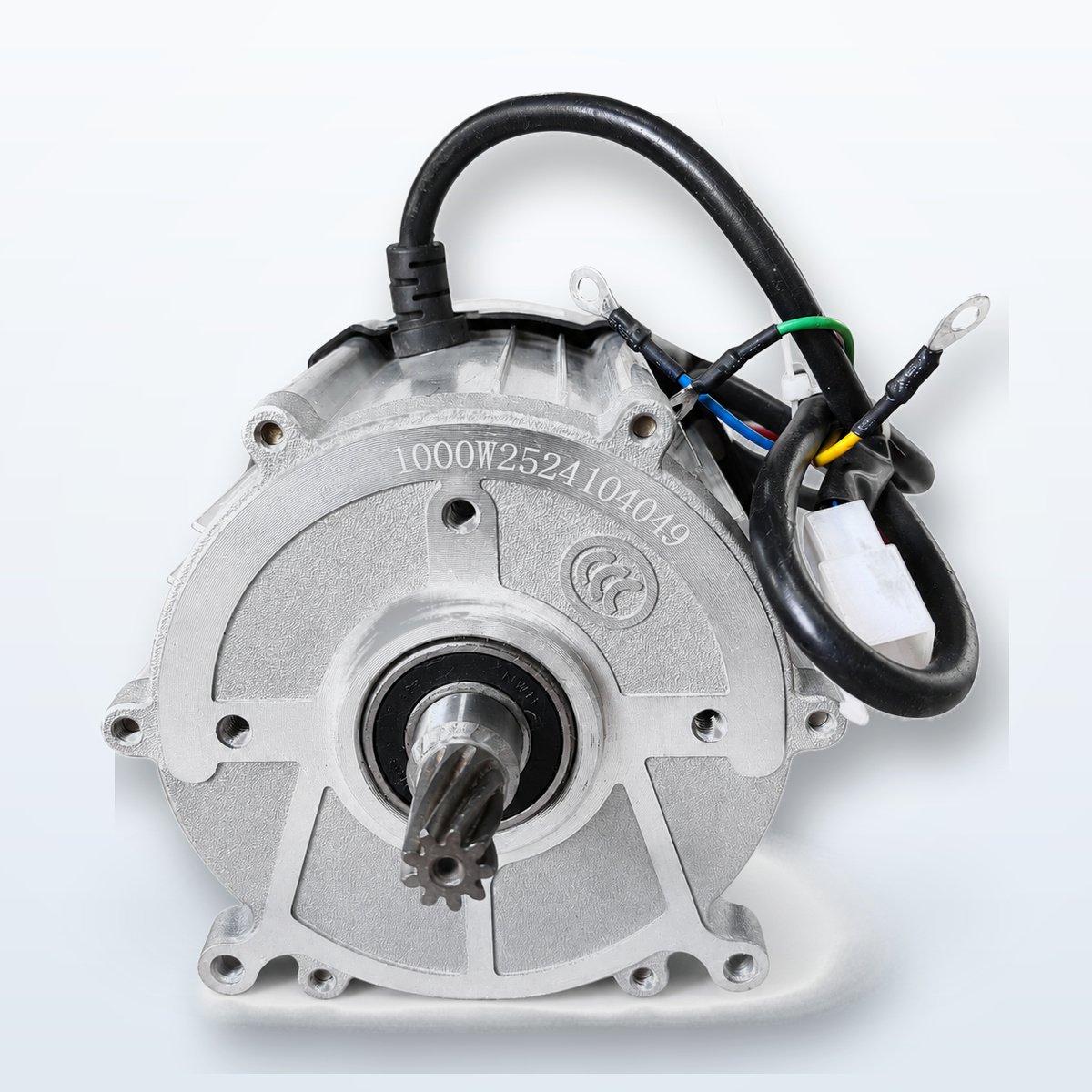

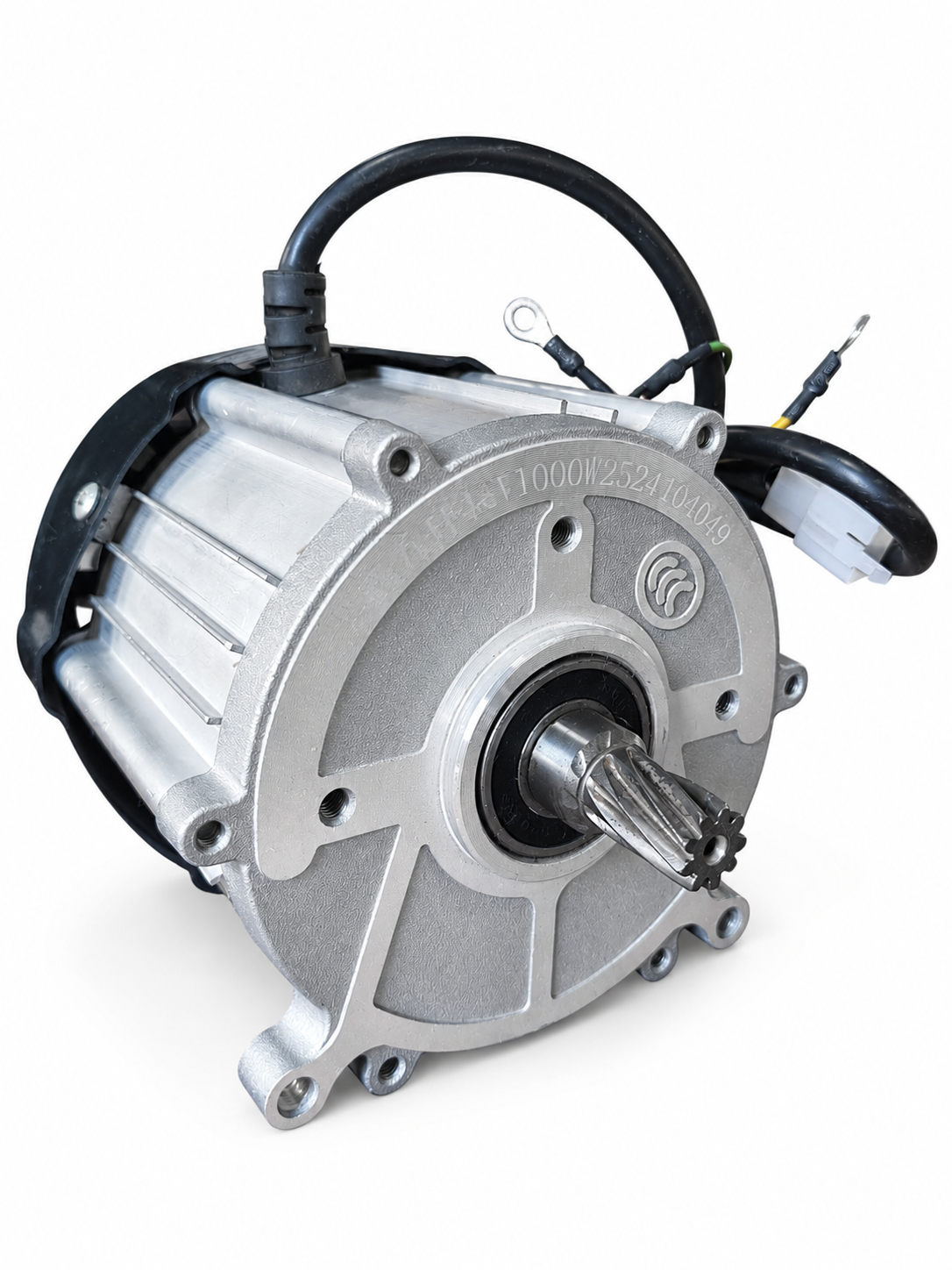

Precision Output Gear

Gear profile, shaft diameter and connection method can be customized.

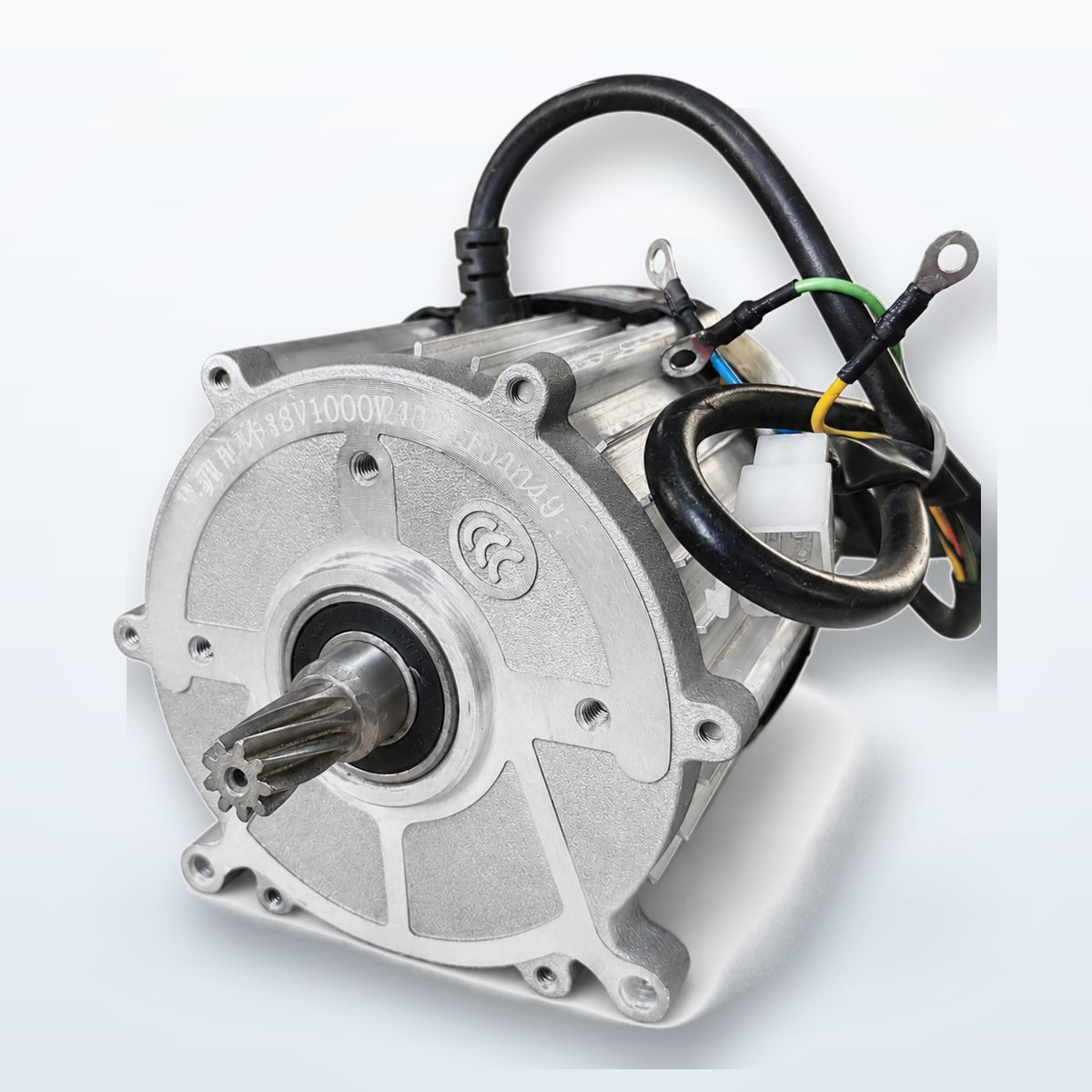

Mounting Interface

Front flange and mounting holes can be matched to the vehicle structure.

Demanding Conditions

Built for Engineering Working Environments

The standard motor supports frequent starting, loaded operation and long working cycles in dusty, humid and outdoor engineering environments.

IP67 ProtectionProtected structure supports outdoor and dusty operating conditions.

Class H InsulationHeat-resistant insulation improves thermal endurance.

Strong Torque Output3N·m rated torque and up to 9N·m maximum torque.

High EfficiencyStandard working efficiency reaches at least 88%.

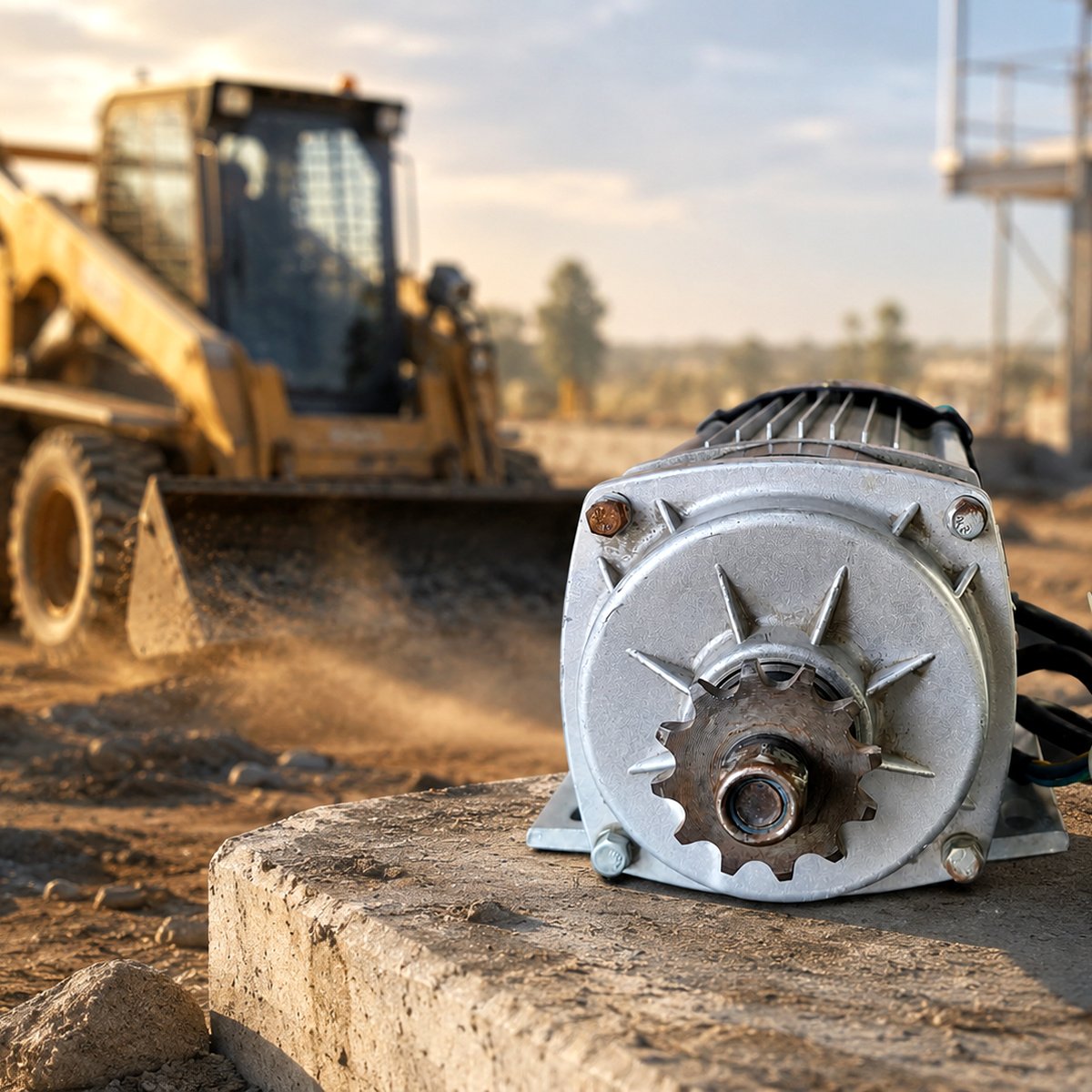

Engineering vehicle motor working in demanding conditions

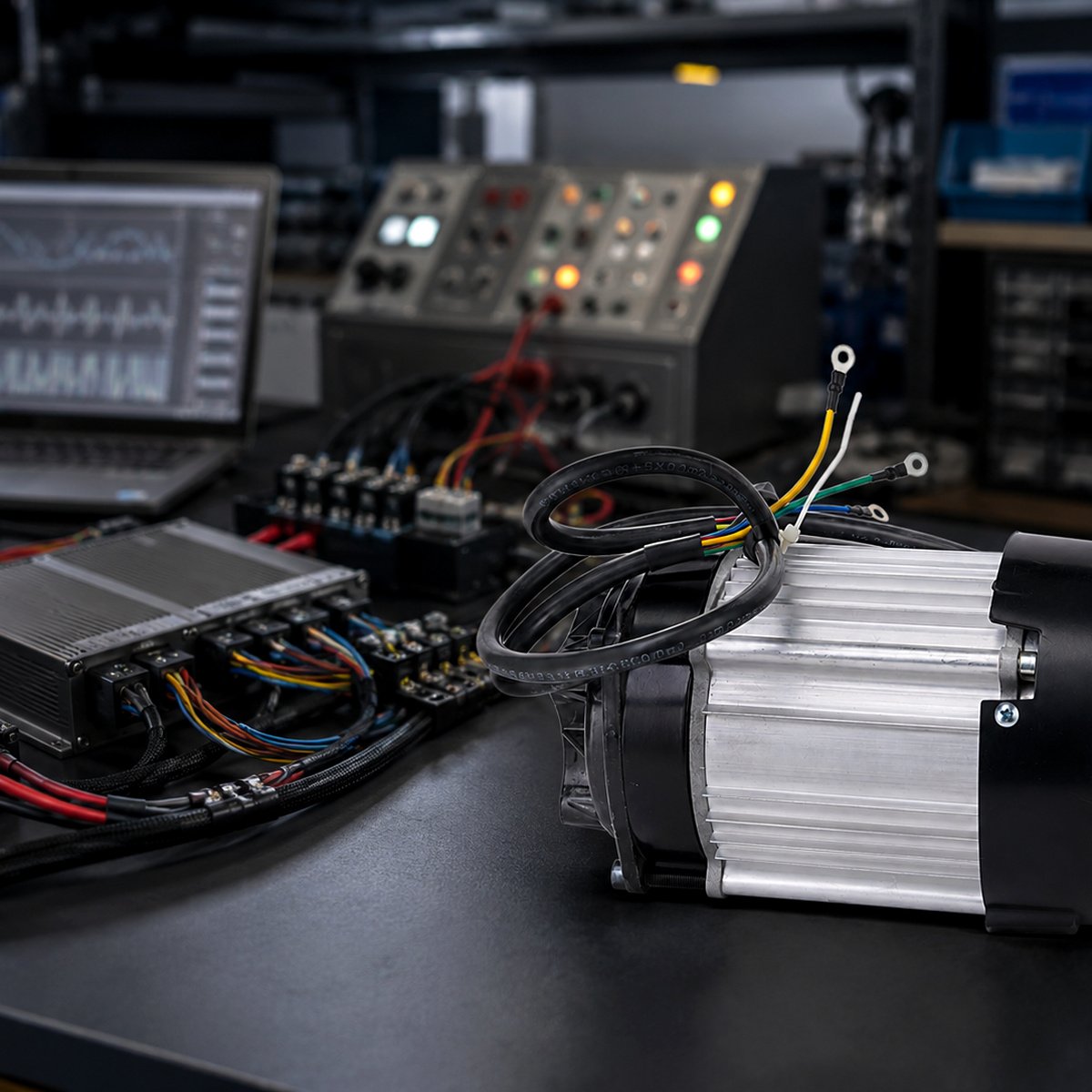

Engineering vehicle motor and controller drive system

Complete Drive Solution

Motor, Controller and Wiring Matching

HAGMOTOR can match the motor, APM350 controller, wiring harness and control functions according to the engineering vehicle battery system and transmission requirements.

48–72V voltage matching

APM350 controller option

PWM speed regulation

Forward and reverse control

Electronic braking support

Controller protection functions

Custom wiring connectors

Customized control settings

Technical Data

JWH 60V–1000W

The following standard parameters are used for this engineering-vehicle motor. Electrical and mechanical specifications can be adjusted for OEM and ODM projects.

1000WRated Power

3000rpmRated Speed

3N·mRated Torque

9N·mMaximum Torque

Custom options: Voltage, speed, torque, output gear, shaft, mounting interface, wiring, connectors, controller functions, nameplate and packaging.

Model

JWH 60V–1000W

Motor Type

Permanent-Magnet Brushless DC Motor

Main Application

Engineering Vehicles and Mobile Machinery

Rated Voltage

48–72V, 60V Nominal

Rated Power

1000W

Rated Speed

3000rpm

Rated Torque

3N·m

Maximum Torque

9N·m

Rated Current

17A

No-Load Current

1.5A

Working Efficiency

≥88%

Duty Cycle

0–100%

Rotation Direction

Clockwise, CW

Protection Grade

IP67

Insulation Class

Class H

Matched Controller

APM350 Series, 48–72V / 20A

Motor Weight

12kg

Overall Length

240mm

Motor Diameter

Ø120mm

Shaft Diameter

Ø30mm

Shaft Length

146mm

Shaft Type / Keyway

6 × 4mm Spline / Keyway

Mounting-Hole Distance

82mm

Base Dimensions

Ø135mm

Flange Dimensions

Ø125mm

Lead Length

0.75m

Power Wiring

Yellow / Blue / Green Three-Phase Wires

Hall Wiring

Red / Yellow / Blue / Black / Green

Speed Control

PWM Speed Control

Forward / Reverse

Supported

Braking Function

Supported with Matched Controller

OEM and ODM Support

Matched to Your Engineering Vehicle

Motor performance, mechanical interfaces, wiring and controller functions can be developed according to the complete vehicle system.

Voltage and PowerRated voltage, motor power, current and efficiency can be adjusted.

Speed and TorqueRated speed, starting torque and maximum torque can be matched.

Output Gear and ShaftGear teeth, spline, keyway, shaft diameter and shaft length are customizable.

Mounting InterfaceFlange, mounting holes and installation dimensions can be customized.

Controller FunctionsPWM speed control, forward, reverse, braking and protection are available.

Branding and PackagingNameplate, logo, labels, manuals and export packaging can be customized.

JWH 60V–1000WBrushless DC Motor

Compact Design with Reliable Output

Designed for Mobile and Utility Equipment
