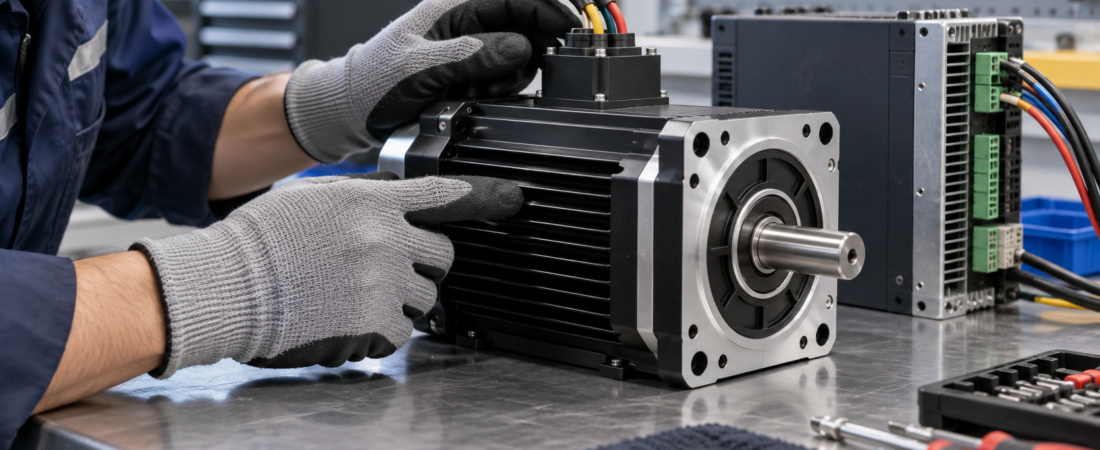

Why Is My Brushless DC Motor Overheating?

A brushless DC motor generates heat during normal operation. The useful question is whether its temperature is consistent with the motor’s rated load, duty cycle, mounting conditions, and ambient temperature. If a motor becomes unusually hot or repeatedly triggers protection, work through the entire drive system before replacing it.

1. Check the Load and Duty Cycle

A motor that frequently starts under heavy load, runs near stall, or operates beyond its intended continuous duty may draw more current and build up heat. Compare the actual operating cycle with the motor’s rated current, torque, and duty requirements. A larger motor or a different gear ratio may be needed if the application consistently demands more than the system can deliver.

2. Look at Cooling Conditions

Dust, restricted airflow, a hot enclosure, or mounting that limits heat transfer can raise operating temperature. Keep cooling paths clear and assess the motor in its actual installation, rather than judging it only during a short bench test.

3. Rule Out Mechanical Drag

Bearings, gearboxes, belts, and driven equipment can place unexpected resistance on the shaft. Unusual noise, difficult rotation when safely disconnected, or a sudden change in running current may point to a mechanical issue.

4. Verify the Controller and Electrical Match

The controller must suit the motor and supply. Incorrect current limits, unsuitable control settings, poor connections, or a rotor-position feedback problem can lead to inefficient operation and excess heating. A qualified technician should compare the motor, controller, and supply specifications, then measure operating conditions against the manufacturer’s limits.

What Should You Do First?

Stop operation if the motor is overheating or a protection fault appears. Allow the system to cool, isolate power before inspection, and record when the problem occurs: at startup, under load, after prolonged running, or only in a hot environment. Those details make troubleshooting much more effective.

Selecting a BLDC motor means matching the complete drive system to the job. For motor and application information, visit https://hagmotor.com/.
