Engineering Machinery BLDC Motor

JWH 60V–1000W Brushless DC Motor

Designed for engineering machinery, utility vehicles and customized mobile equipment. The motor combines a 48–72 V operating range, 1000 W rated power, 3000 rpm rated speed, strong torque output, IP67 protection and OEM/ODM support.

Request a Quote View Specifications

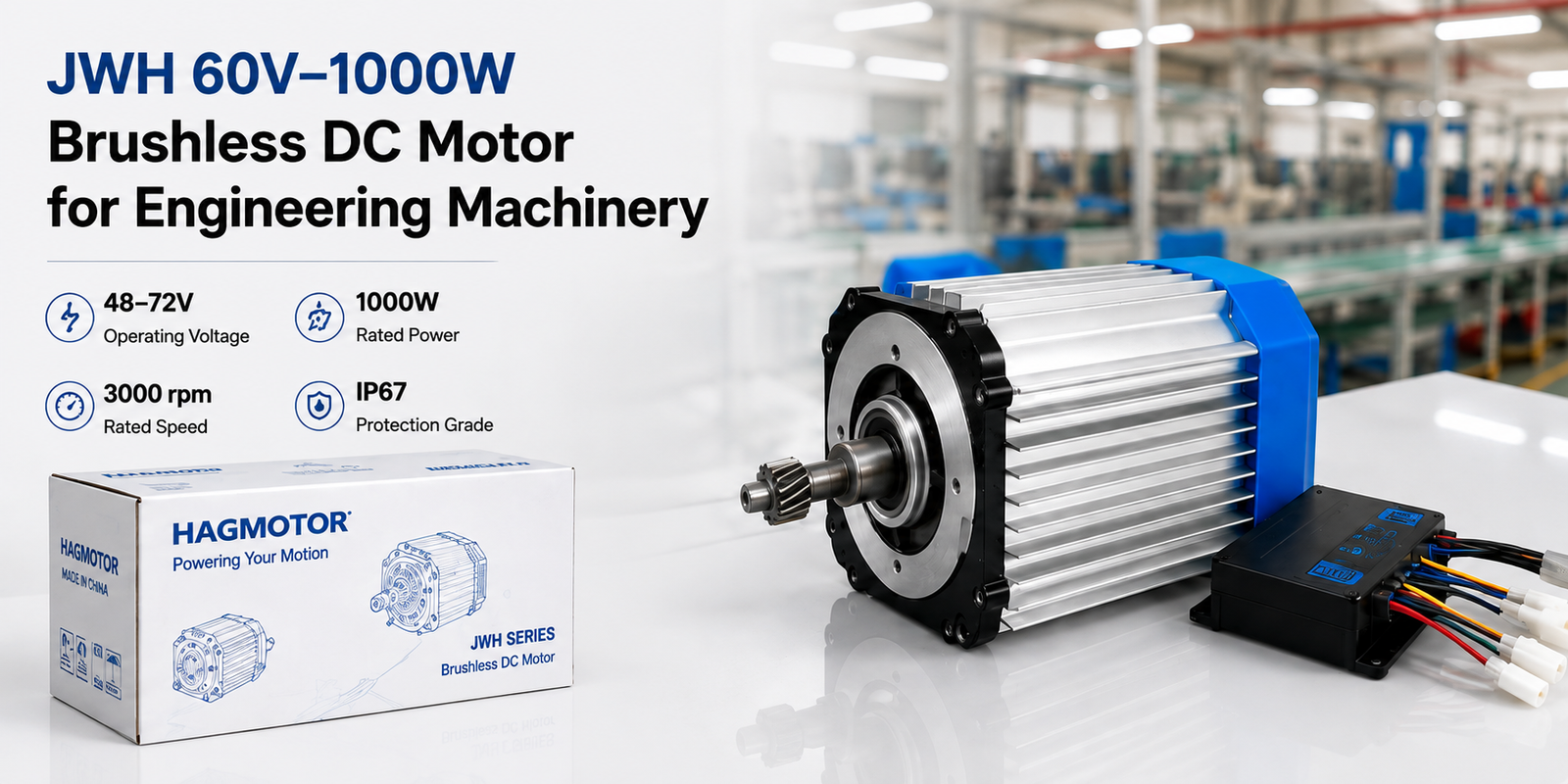

JWH 60V 1000W brushless DC motor for engineering machinery

48–72 V60 V nominal operating voltage

1000 WRated motor power

3000 rpmRated motor speed

IP67Protection for demanding environments

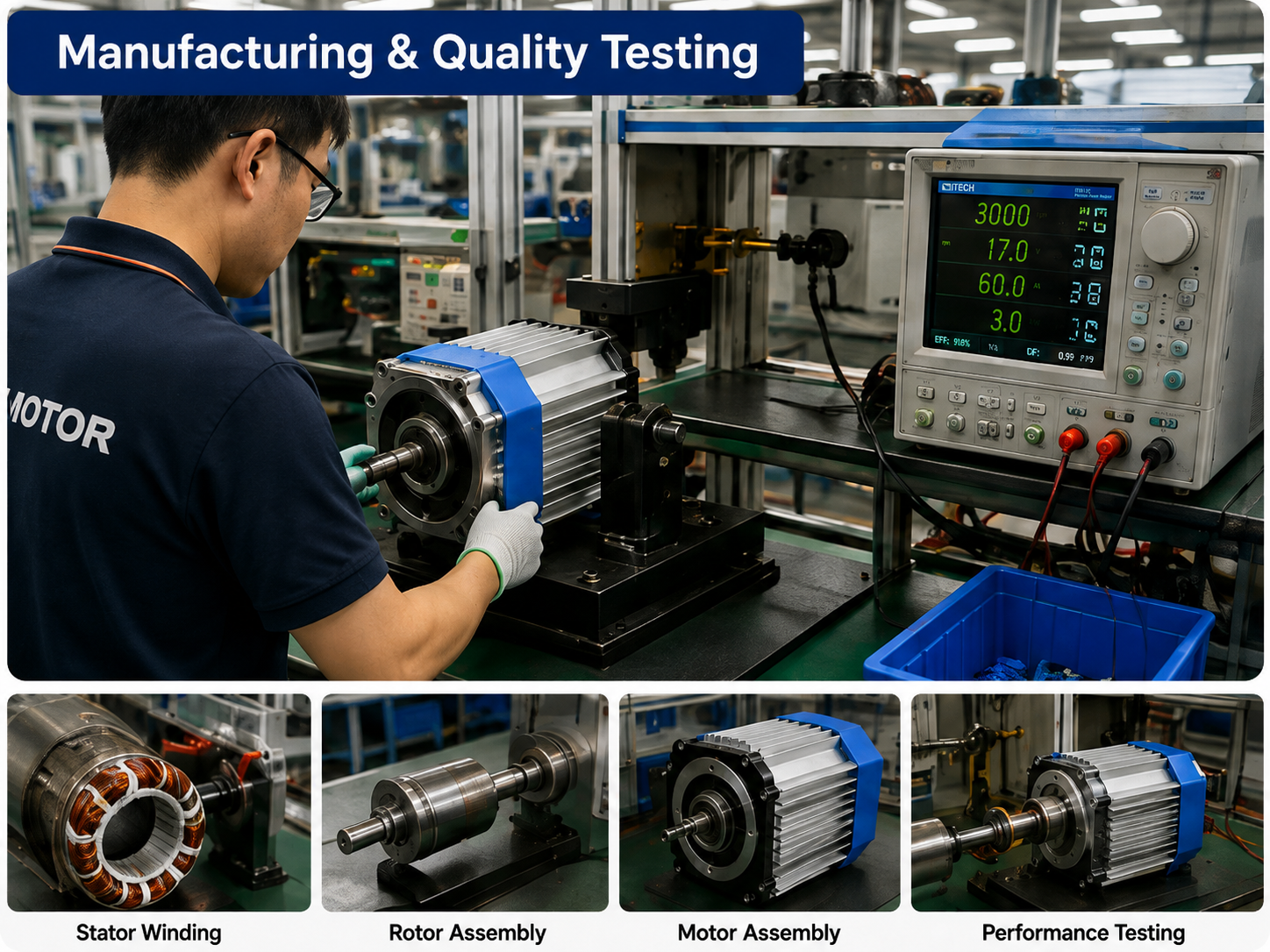

Manufacturing & Quality

Assembly and Performance Verification

The production process can include stator winding, rotor assembly, complete motor assembly and performance testing. Electrical and mechanical checks are arranged according to the confirmed project specification before batch delivery.

Stator winding inspection

Rotor and shaft assembly

Motor assembly verification

Speed and current testing

Controller compatibility

Final appearance inspection

JWH motor manufacturing and quality testing

Product Structure

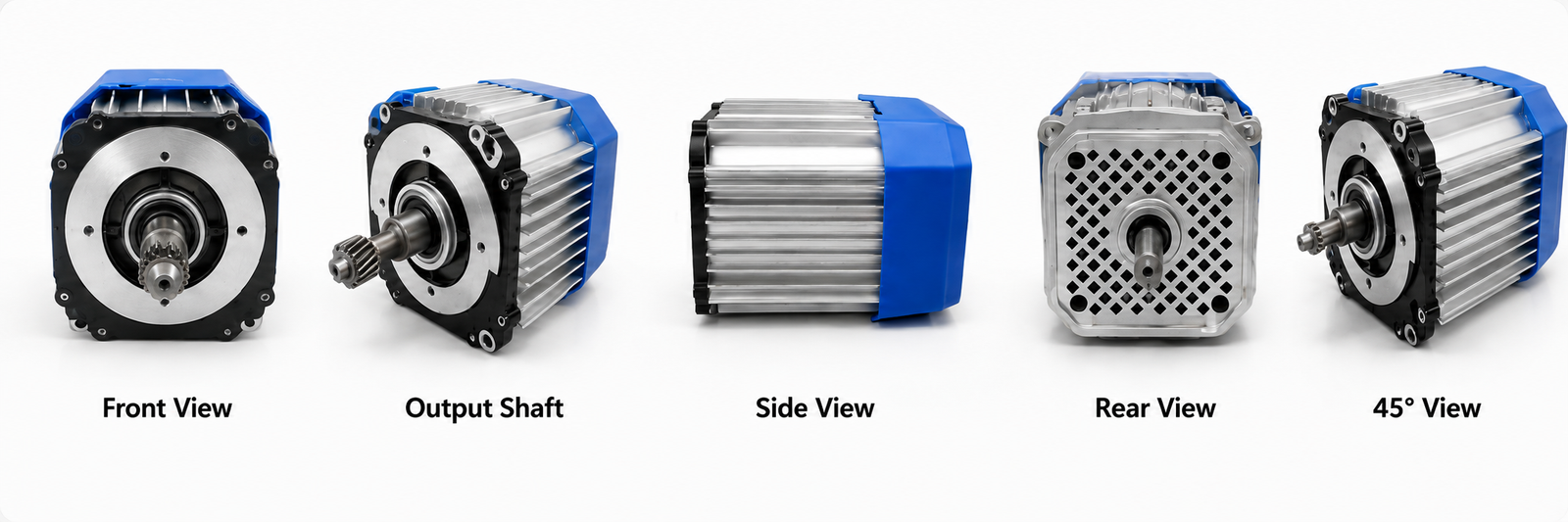

Five Views of the Motor

Front, output shaft, side, rear and 45-degree views clearly show the installation face, aluminum cooling fins, output interface and overall housing structure.

Front output shaft side rear and 45 degree views of JWH motor

Technical Specifications

JWH 60V–1000W Parameters

The following parameters are based on the previously supplied specification sheet for this engineering-machinery motor.

Customization: Voltage, power, rated speed, shaft structure, flange dimensions, wiring, connectors and controller functions can be adjusted according to the application.

Model

JWH 60V–1000W

Motor Type

Permanent-Magnet Brushless DC Motor

Rated Voltage

48–72 V (60 V nominal)

Rated Power

1000 W

Rated Speed

3000 rpm

Rated Torque

3 N·m

Maximum Torque

9 N·m

Rated Current

17 A

No-Load Current

1.5 A

Working Efficiency

≥88%

Duty Cycle

0–100%

Rotation Direction

Clockwise (CW)

Protection Grade

IP67

Insulation Class

Class H

Matched Controller

APM350 Series, 48–72 V / 20 A

Motor Weight

12 kg

Overall Length

240 mm

Motor Width / Diameter

Ø120 mm

Shaft Diameter

Ø30 mm

Shaft Length

146 mm

Shaft Type / Keyway

6 × 4 mm spline / keyway

Mounting-Hole Distance

82 mm

Base Dimensions

Ø135 mm

Flange Dimensions

Ø125 mm

Lead Length

0.75 m

Speed Control

PWM speed control

Brake / Reverse

Brake and reverse supported

OEM Branding

Branding & Packaging Customization

Private-label projects can include customized motor nameplates, model numbers, manuals, barcode labels, product cartons and export packaging.

HAGMOTOR branding nameplate manual labels and packaging customization

Batch Supply

Packaging, Warehousing and Global Delivery

After production and inspection, motors can be packed according to the confirmed requirements and prepared for warehousing, container loading and international delivery.

Batch packaging warehouse container loading and global delivery

Key Advantages

Performance and Project Support

The motor combines efficiency, environmental protection, heat-resistant insulation, controller matching and OEM/ODM customization support.

High efficiency IP67 Class H APM350 controller and OEM ODM support

Applications

Suitable for Engineering and Mobile Equipment

The motor can be matched to battery-powered equipment requiring compact dimensions, strong output and customized transmission interfaces.

Engineering MachineryAuxiliary drives and customized powered mechanisms.

Utility VehiclesLow-speed electric utility and service vehicles.

Electric TricyclesDrive or auxiliary systems for cargo and industrial tricycles.

Material HandlingPallet trucks, stackers and customized handling equipment.

Agricultural MachinerySprayers, feeders, pumps and mobile agricultural equipment.

Compact Construction EquipmentBattery-powered compact machinery and work attachments.

Specialized VehiclesCustomized propulsion and auxiliary drive applications.

Custom Drive SystemsMotor and controller systems developed around equipment needs.

OEM & ODM Options

Configuration Can Be Customized

Electrical parameters, mechanical interfaces, controller functions and branding can be adjusted according to the project.

Voltage & PowerVoltage, output power, current and efficiency matching.

Speed & TorqueRated speed, torque curve, startup torque and duty cycle.

Shaft & Gear InterfaceGear, spline, keyway, diameter and shaft length.

Mounting StructureFlange, mounting holes, base and installation dimensions.

Controller FunctionsPWM speed control, forward, reverse, braking and protection.

Wiring & BrandingLead length, connectors, nameplate, logo, manuals and cartons.

Need This Motor Matched to Your Equipment?

Send the application, voltage, power, speed, torque, installation dimensions, shaft requirements, controller functions and estimated quantity for technical evaluation.
