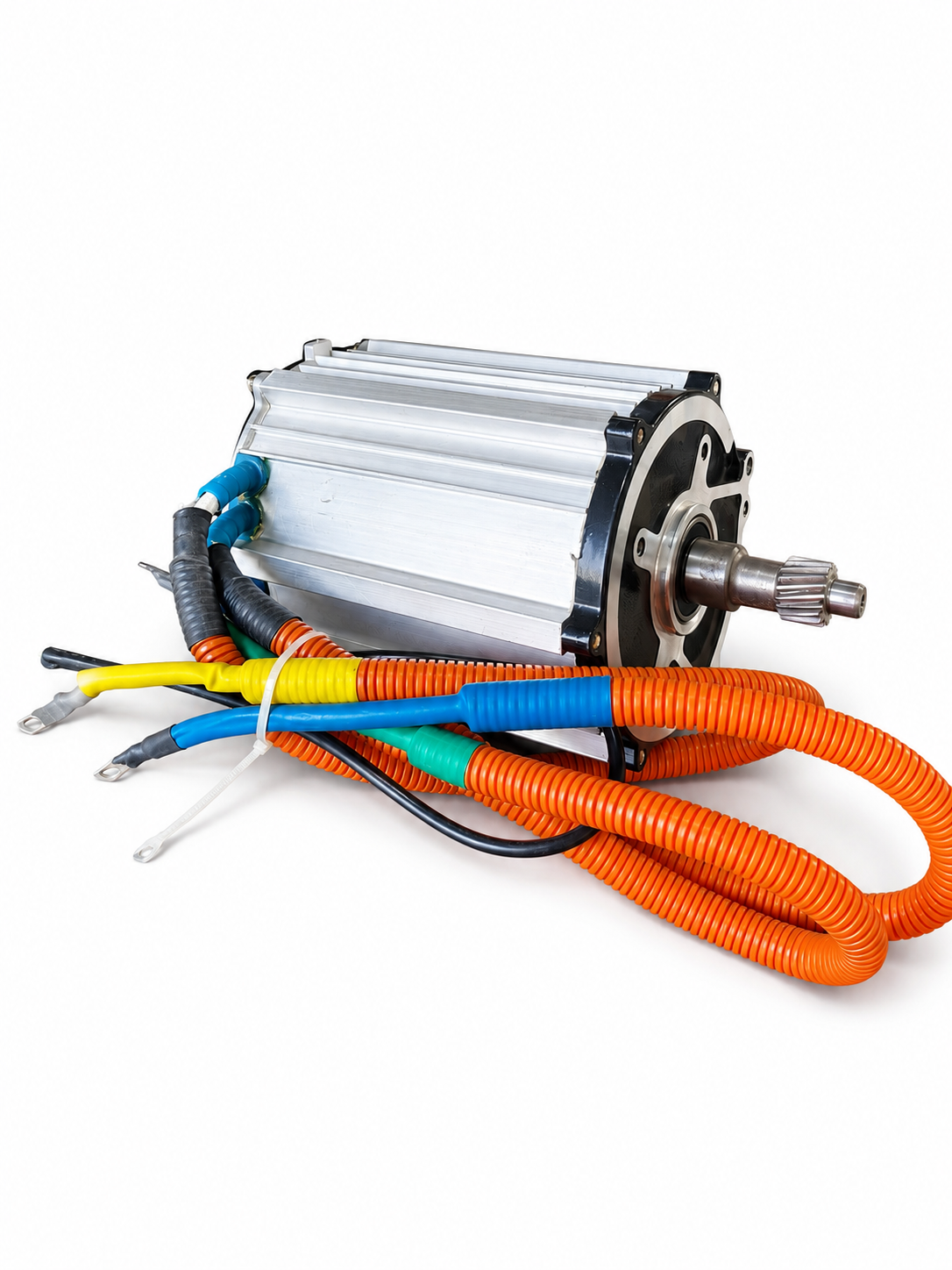

JWH 60V–1000W Brushless DC Motor
A permanent-magnet brushless DC motor developed for electric cargo tricycles, passenger tricycles, delivery vehicles and customized low-speed mobile equipment. It supports a 48–72V operating range, 1000W rated power, 3000rpm rated speed, 3N·m rated torque and up to 9N·m maximum torque.
Reliable Drive Power for Electric Tricycles
The JWH motor uses a ribbed aluminum housing, external cooling fan and reinforced phase wiring. Its compact structure is suitable for integration with electric tricycle rear axles, reduction gearboxes and customized transmission systems.

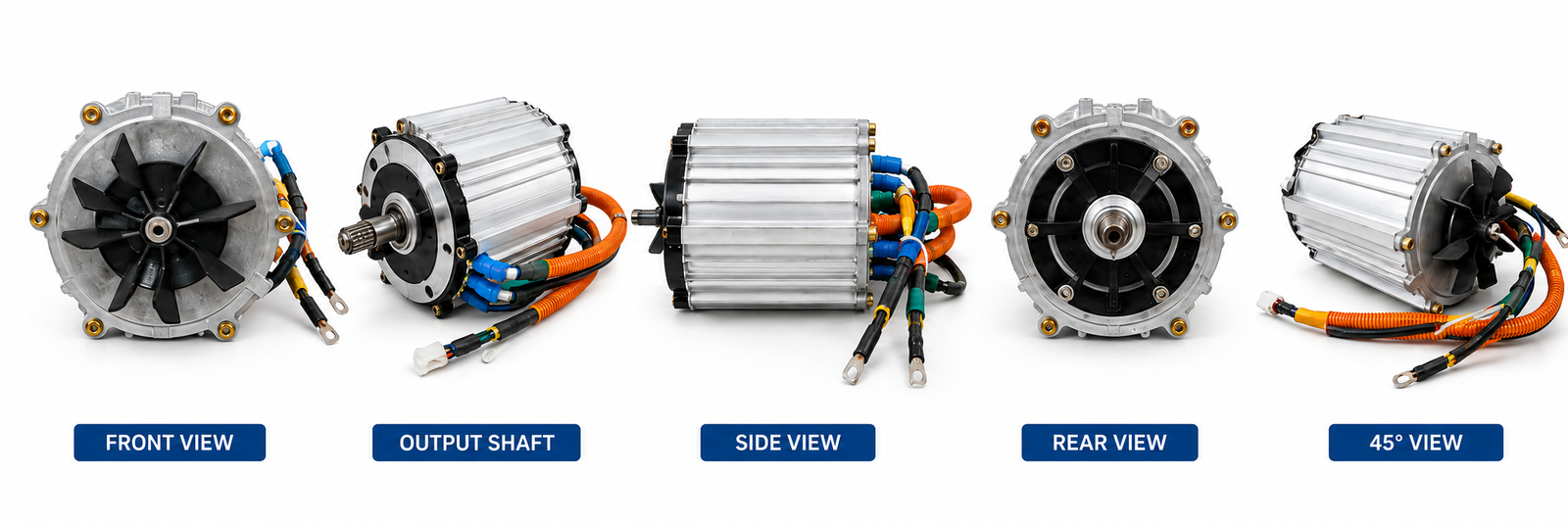

Multi-Angle Product Views
Detailed views show the output gear, cooling structure, aluminum body, heavy-duty wiring and Hall sensor connector.

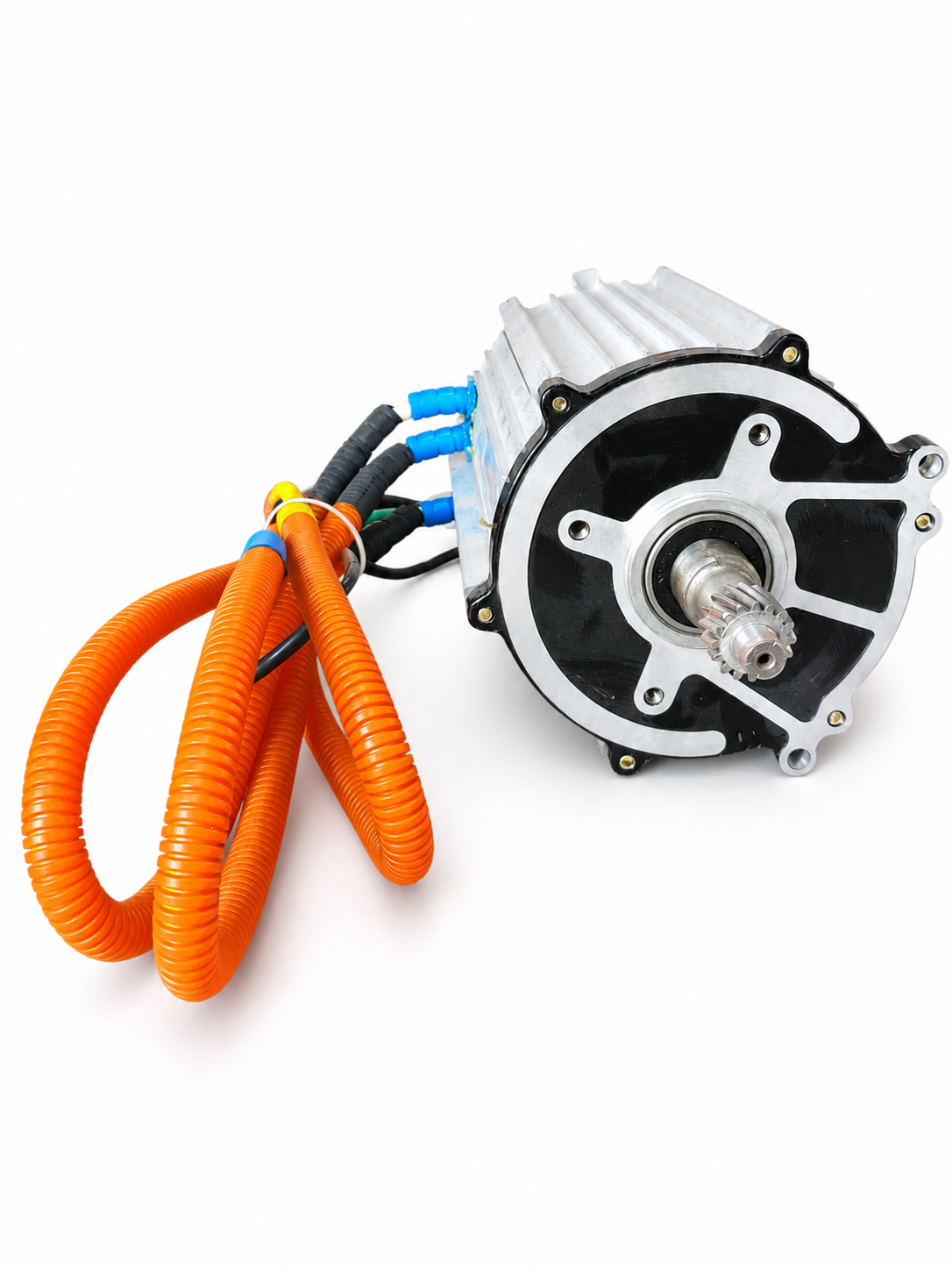

Output Shaft and Gear
The shaft, gear, spline and keyway can be matched to the rear axle or transmission structure.

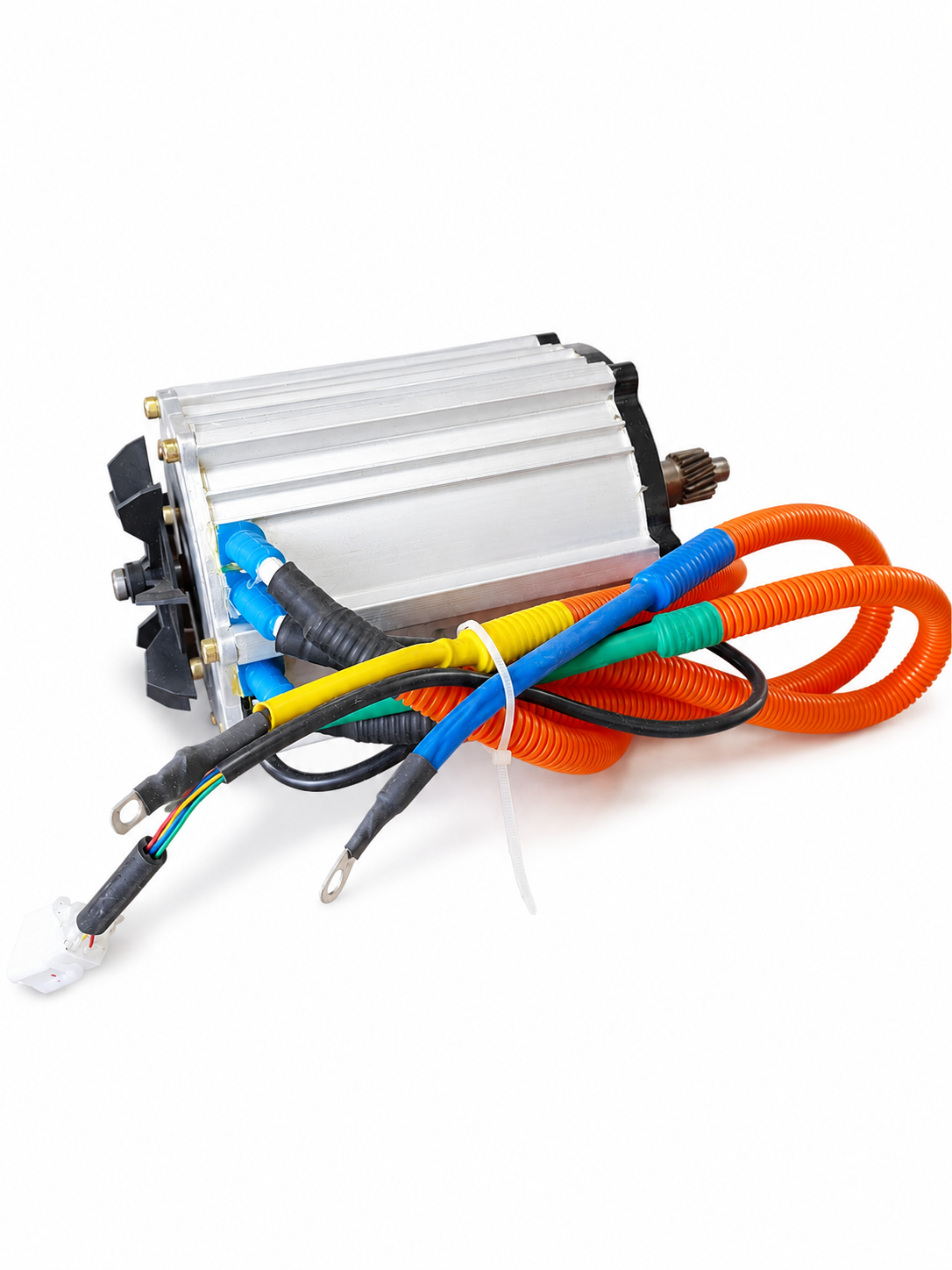

Heavy-Duty Wiring Harness
Three-phase power wiring and Hall sensor wiring support reliable controller connection.

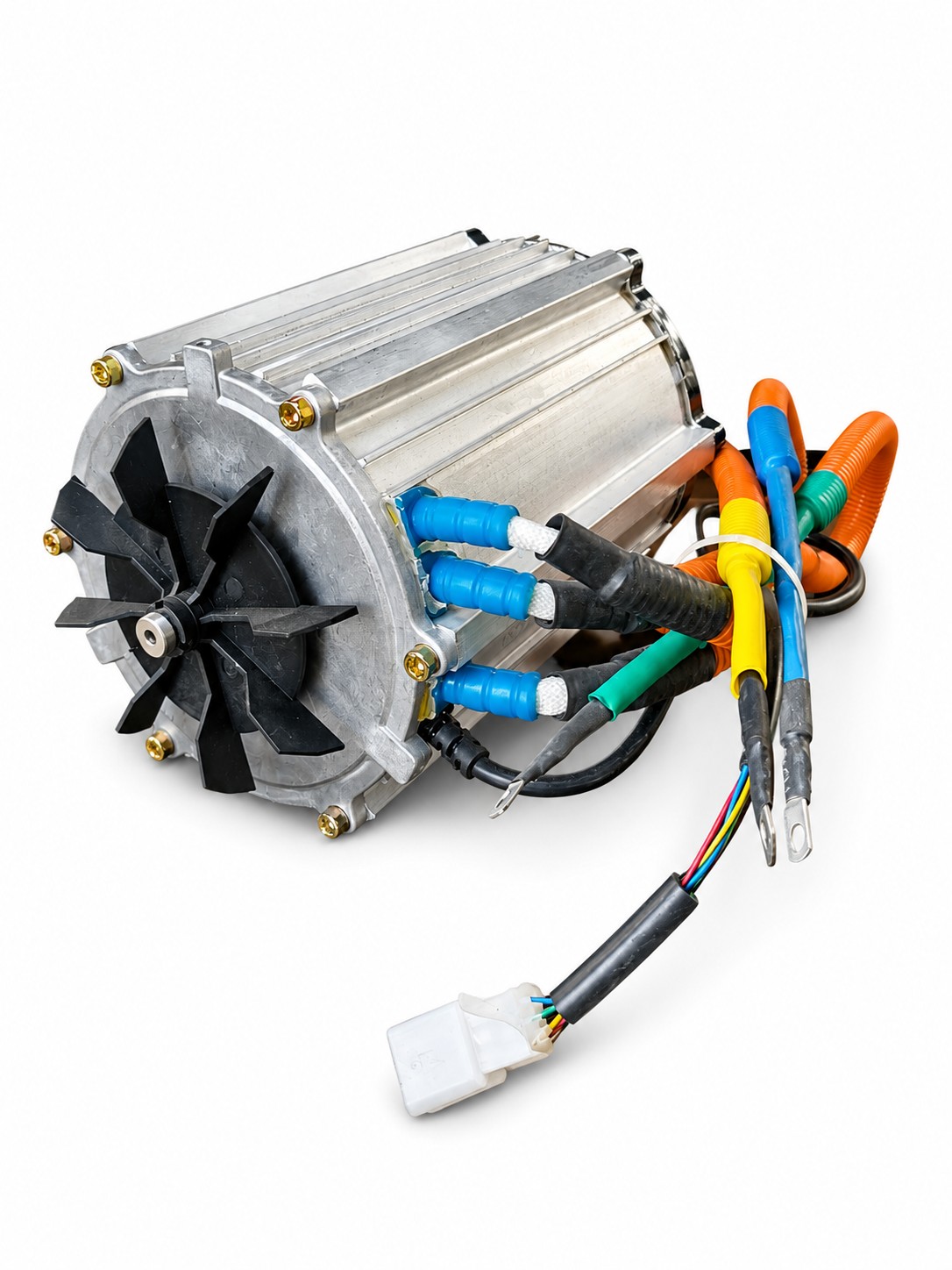

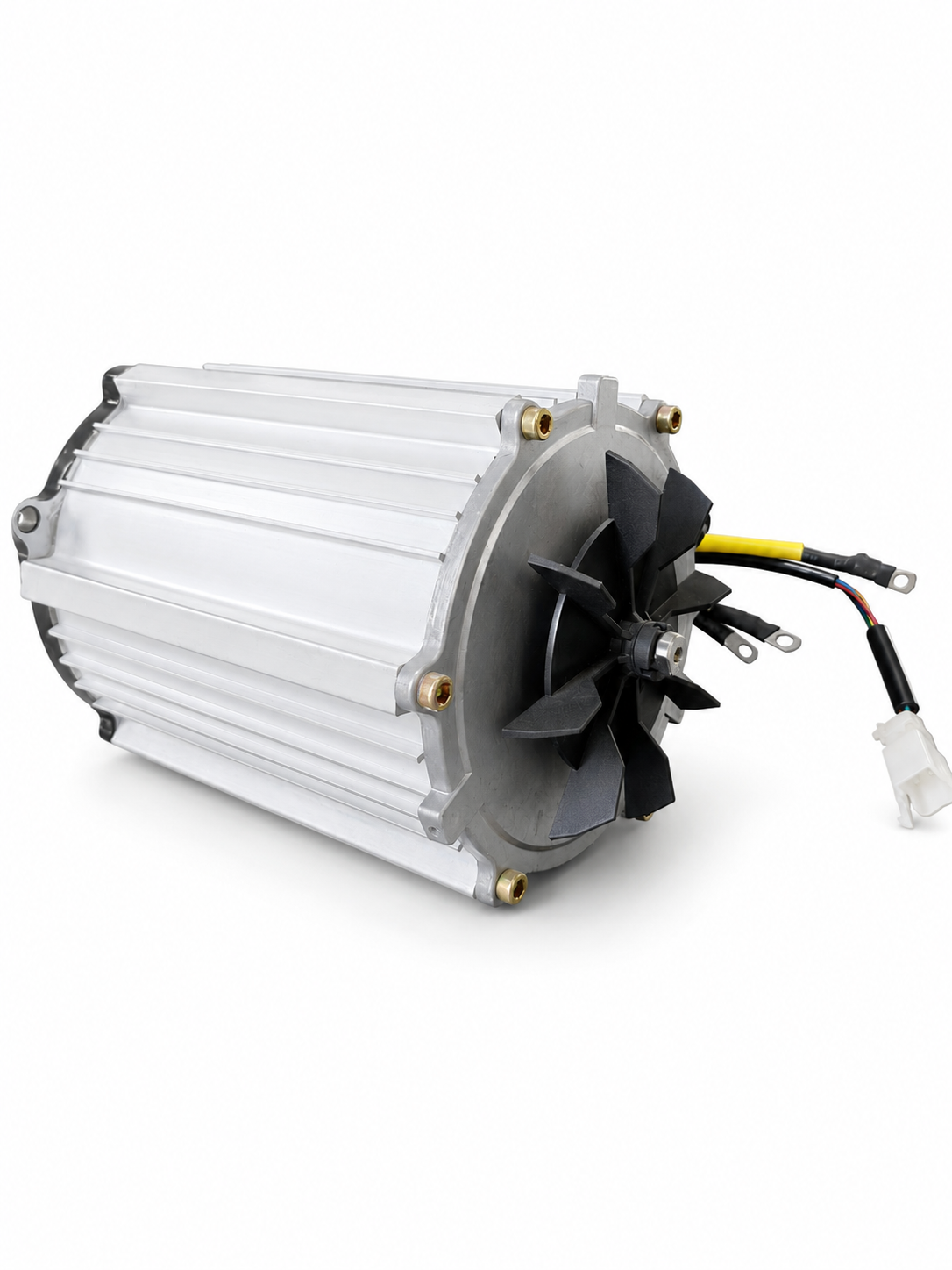

External Cooling Fan
Fan-assisted airflow helps control the operating temperature during extended use.
Compact Motor Assembly
The aluminum body provides heat dissipation while maintaining a compact installation size.
Engineered for Commercial Electric Vehicles
The JWH motor combines efficient output, protected construction, controller compatibility and configurable mechanical interfaces.
≥88% Efficiency
Efficient permanent-magnet brushless construction helps reduce energy loss.
9N·m Maximum Torque
Strong maximum torque supports loaded starting and low-speed operation.
IP67 Protection
Protected motor structure is suitable for demanding mobile equipment environments.
Class H Insulation
Heat-resistant insulation supports reliable operation under demanding duty cycles.
APM350 Controller
Supports PWM speed control, forward, reverse and controller-based braking.
OEM and ODM Support
Voltage, shaft, mounting, wiring, branding and packaging can be customized.
JWH 60V–1000W Parameters
This parameter set is used as the standard configuration for the current motor page. Electrical and mechanical details can be adjusted according to the electric tricycle platform and transmission system.
Suitable for Electric Tricycle Platforms
The motor can be matched to vehicle load, battery voltage, target speed, wheel diameter and transmission ratio.
Motor and Controller Configuration Can Be Customized
HAGMOTOR can match the motor solution to the vehicle battery, rear axle, transmission and control requirements.
Need This Motor for Your Electric Tricycle?
Send the battery voltage, rated load, target speed, wheel diameter, climbing requirement, rear axle structure and estimated quantity for motor and controller evaluation.
Request a Quote
Submit your vehicle and motor requirements through the inquiry form.
