JWH 60V–1000W Engineering Motor
JWH 60V–1000W Engineering Motor
JWH 60V–1000W Engineering Motor
JWH 60V–1000W Engineering Motor

JWH 60V–1000W Engineering Motor

The JWH 60V–1000W Engineering Machinery Brushless DC Motor is designed for compact construction machinery, utility vehicles, agricultural equipment, material-handling machines and customized mobile equipment. It supports a 48–72V operating range, 1000W rated power, 3000rpm rated speed, 3N·m rated torque and up to 9N·m maximum torque.Featuring IP67 protection, Class H insulation, efficient heat dissipation and compatibility with the APM350 controller, this motor provides stable performance for frequent starting, loaded operation and demanding working environments. Voltage, shaft, mounting structure, wiring, controller functions, branding and packaging can be customized for OEM and ODM projects.Request a Quote

Category:

Description

Engineering Machinery BLDC Motor

JWH 60V–1000W Engineering Motor

A permanent-magnet brushless DC motor developed for compact engineering machinery, utility vehicles, construction equipment, agricultural machinery and customized industrial mobile equipment. It combines strong output, compact installation, efficient cooling and configurable mechanical interfaces.

48–72V Operating RangeSuitable for 60V nominal battery-powered equipment.
1000W Rated PowerStable output for auxiliary drive and mobile machinery.
3N·m Rated TorqueMaximum torque reaches 9N·m for loaded starting.
IP67 ProtectionClass H insulation supports demanding environments.
Request a QuoteView Specifications

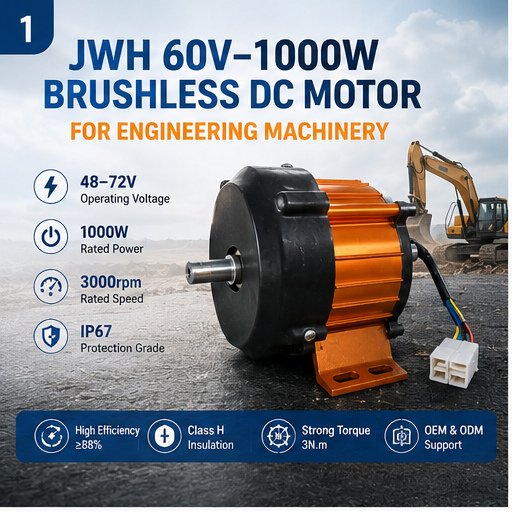

JWH 60V 1000W engineering machinery brushless DC motor

Engineering Drive SolutionMotor • Controller • Interface Matching
48–72V60V nominal voltage
1000WRated motor power
3000rpmRated motor speed
IP67Class H insulation

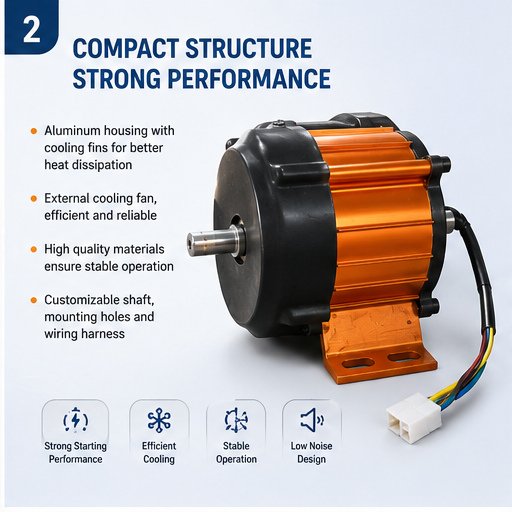

Engineering machinery motor product structure
Product Overview

Compact Power for Engineering Equipment

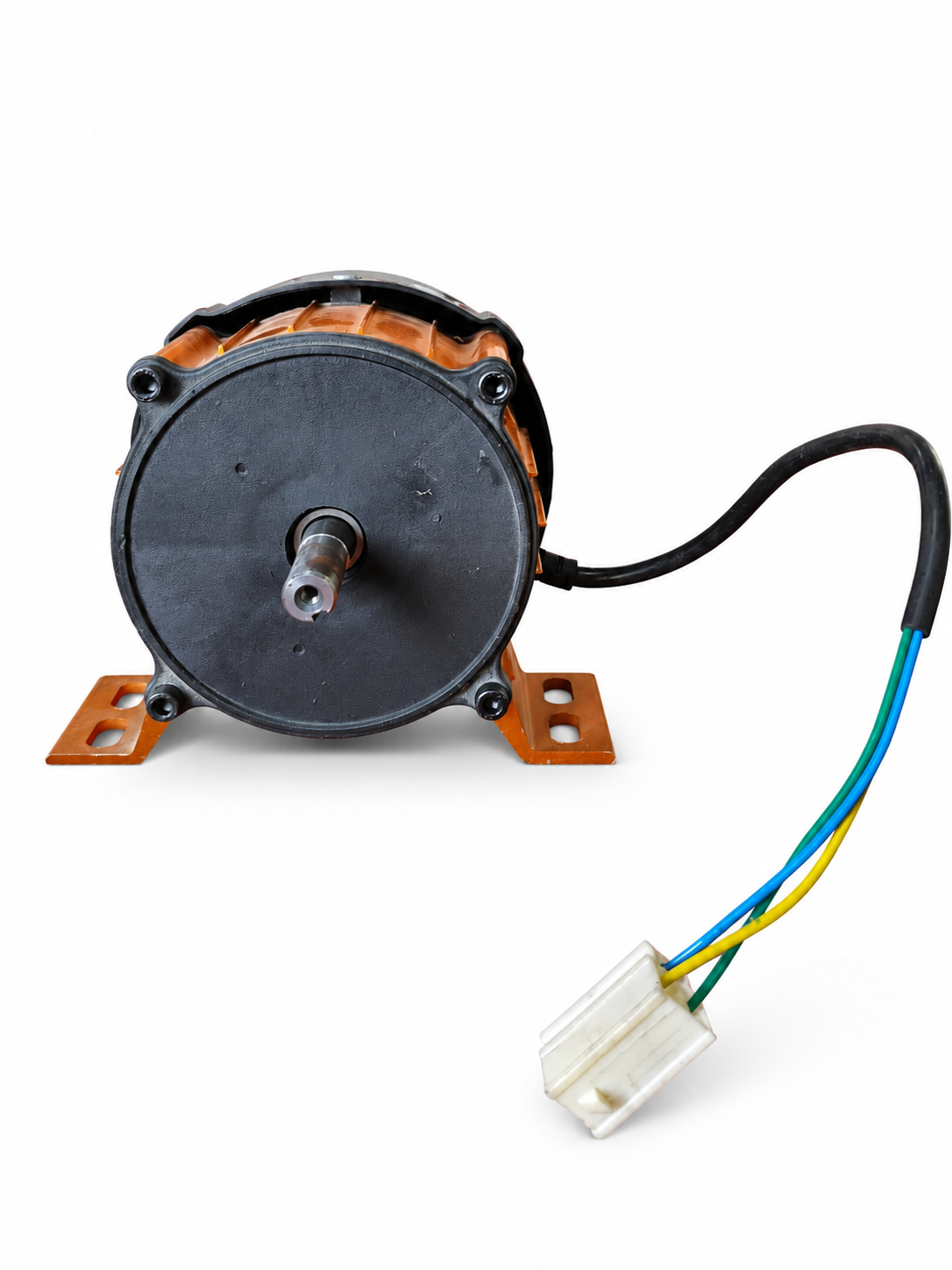

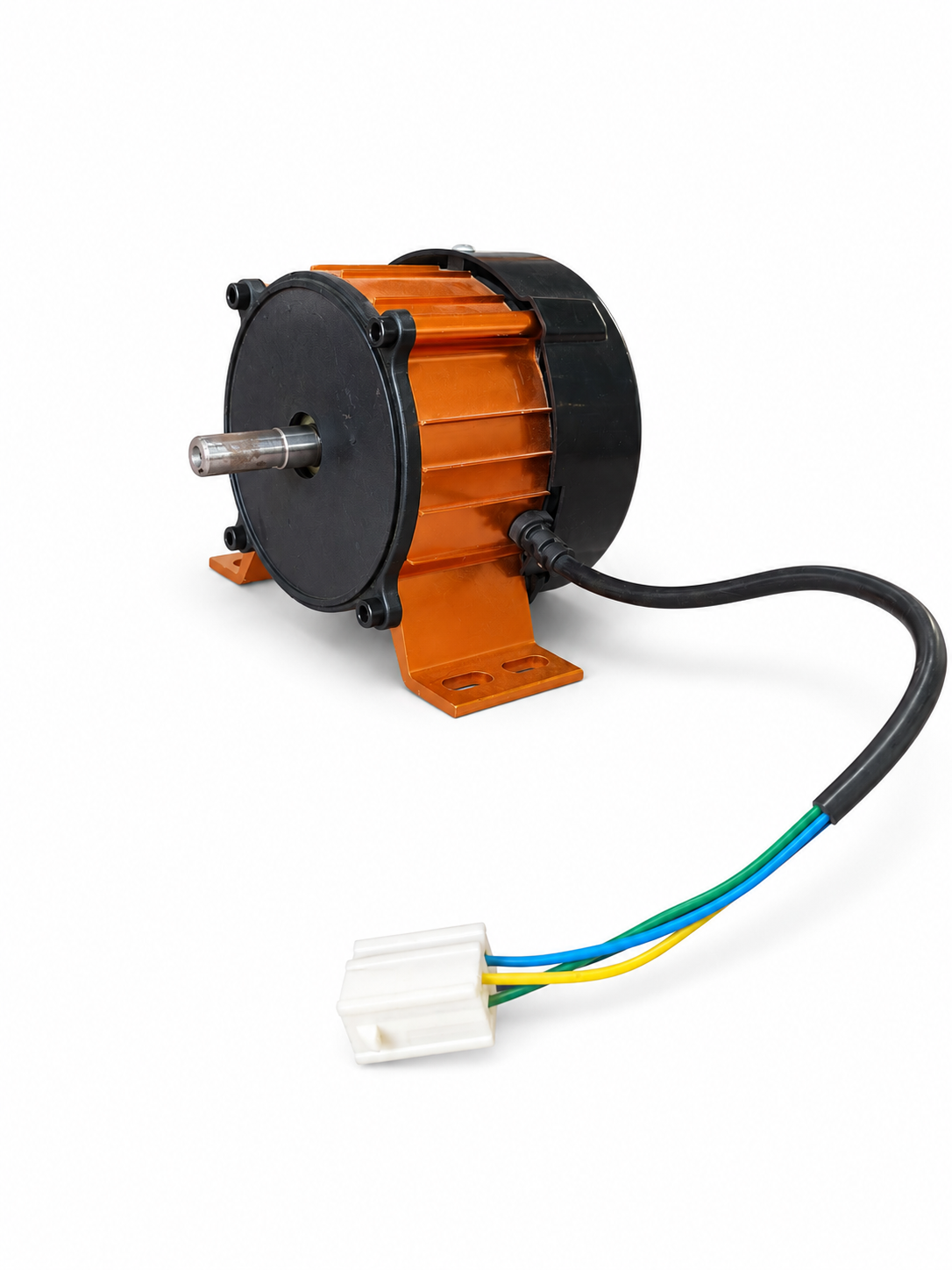

The JWH engineering motor uses a durable ribbed housing, protected rear cover, fixed mounting base and configurable output shaft. Its structure is suitable for compact engineering vehicles, utility machinery, mobile industrial equipment and customized mechanical drive systems.

Strong Starting Output3N·m rated torque and up to 9N·m maximum torque support loaded starting.
Compact InstallationFixed mounting feet and a configurable shaft simplify equipment integration.
Efficient CoolingRibbed housing and protected ventilation improve thermal performance.
Controller CompatibilityDesigned for matching with an APM350-series 48–72V, 20A controller.
Engineering Applications

Designed Around Real Working Equipment

The motor can be matched to different equipment loads, duty cycles, transmission structures and operating environments.

Compact Construction Machinery
Engineering Utility Vehicles
Road Maintenance Equipment
Agricultural Machinery
Material-Handling Equipment
Mobile Hydraulic Equipment
Industrial Cleaning Machinery
Customized Mobile Equipment
Engineering machinery motor application scene

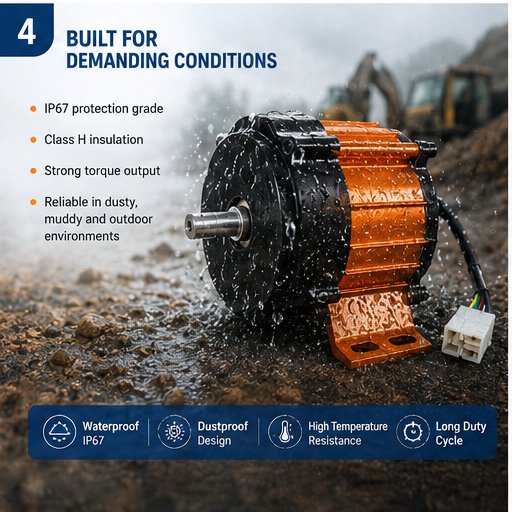

Engineering motor operating in demanding working conditions
Working Conditions

Built for Demanding Operating Environments

The motor configuration is suitable for equipment requiring frequent starting, low-speed torque, stable speed regulation and reliable operation in dusty or outdoor working conditions.

Frequent StartingSuitable for equipment with repeated start-stop working cycles.
Loaded OperationStrong maximum torque supports equipment startup under load.
Outdoor EquipmentIP67 protection supports demanding operating environments.
Long Duty CyclesClass H insulation and efficient cooling support extended operation.
Manufacturing & Testing

Assembly and Performance Verification

The motor can be inspected through winding verification, rotor and shaft assembly, complete motor assembly, no-load operation and performance testing before batch delivery.

Stator InspectionWinding and insulation condition verification.
Rotor AssemblyShaft alignment and rotating-component inspection.
Motor TestingSpeed, voltage, current and torque verification.
Final InspectionHousing, wiring, connector and appearance checks.

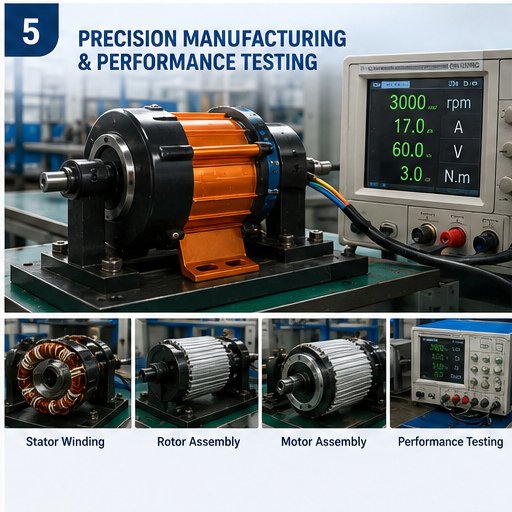

Engineering motor manufacturing and performance testing

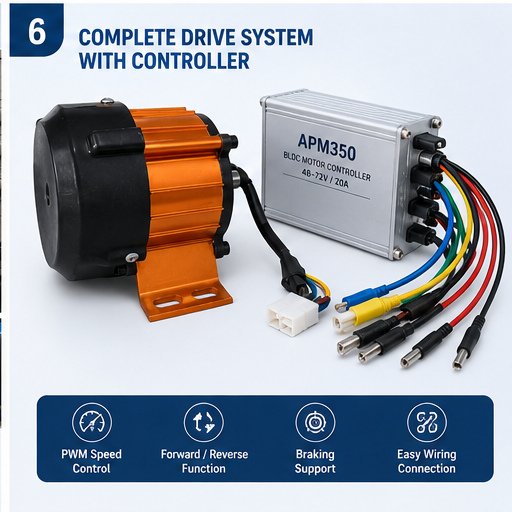

Engineering motor and APM350 controller drive system
Motor & Controller System

Complete BLDC Drive Solution

HAGMOTOR can match the controller, wiring, speed-control method and mechanical interface according to the engineering equipment requirements.

48–72V voltage matching
Rated speed and torque matching
Custom shaft and keyway
Mounting-hole customization
PWM speed control
Forward and reverse control
Controller-based braking
Custom wiring and connectors
Technical Specifications

JWH 60V–1000W Parameters

This standard parameter set is used for the current engineering-motor page. Electrical and mechanical details can be adjusted according to the equipment load, duty cycle and transmission structure.

1000WRated power
3000rpmRated speed
3N·mRated torque
9N·mMaximum torque
Customization: Voltage, power, speed, torque, shaft, mounting structure, wiring, connectors and controller functions can be adjusted according to the equipment.
Model
JWH 60V–1000W
Motor Type
Permanent-Magnet Brushless DC Motor
Rated Voltage
48–72V (60V Nominal)
Rated Power
1000W
Rated Speed
3000rpm
Rated Torque
3N·m
Maximum Torque
9N·m
Rated Current
17A
No-Load Current
1.5A
Working Efficiency
≥88%
Duty Cycle
0–100%
Rotation Direction
Clockwise (CW)
Protection Grade
IP67
Insulation Class
Class H
Matched Controller
APM350 Series, 48–72V / 20A
Motor Weight
12kg
Overall Length
240mm
Motor Diameter
Ø120mm
Shaft Diameter
Ø30mm
Shaft Length
146mm
Shaft Type / Keyway
6 × 4mm Spline / Keyway
Mounting-Hole Distance
82mm
Base Dimensions
Ø135mm
Flange Dimensions
Ø125mm
Lead Length
0.75m
Power Wiring
Yellow / Blue / Green Three-Phase Wires
Hall Wiring
Red / Yellow / Blue / Black / Green
Speed Control
PWM Speed Control
Forward / Reverse
Supported
Braking Function
Supported with Matched Controller
OEM & ODM Options

Customized Around Your Equipment

The motor, controller, mechanical interface and wiring configuration can be developed according to the machine structure and operating requirements.

Voltage and PowerRated voltage, motor power, current and efficiency can be matched.
Speed and TorqueRated speed, startup torque, maximum torque and duty cycle can be adjusted.
Output ShaftGear, spline, keyway, shaft diameter and shaft length can be customized.
Mounting StructureMounting feet, flange, mounting holes and installation dimensions can be adjusted.
Controller FunctionsPWM speed control, forward, reverse, braking and protection are available.
Branding and PackagingNameplate, logo, labels, manuals and export cartons can be customized.

Need a Motor for Your Engineering Equipment?

Send the equipment type, battery voltage, required power, target speed, torque, installation dimensions, shaft interface and estimated quantity for technical evaluation.

Discuss Your Application →

Request a Quote

Submit your engineering-equipment and motor requirements through the inquiry form.
